See Our Product and Solutions in Action

See our products and solutions in action and learn how to keep your machinery at peak performance.

Horizon Systems Intro Video

Introducing Horizon Systems. We mix innovation into everything we do.

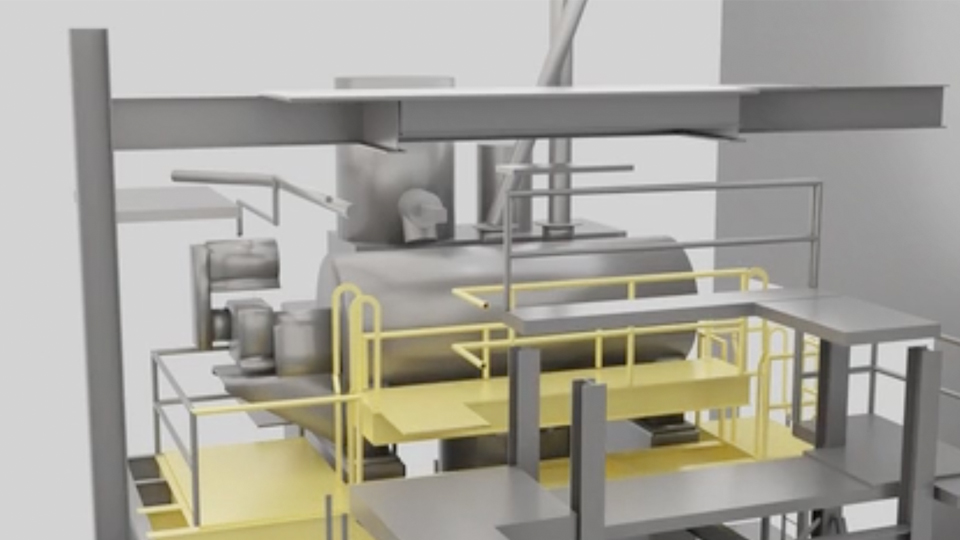

3-D Scanning for Cooler Changeout

3-D scanning existing installations can provide equipment changeouts and upgrades that better fit your space and provide less downtime. Recently, Horizon Systems engineers used the process to help provide a cooler changeout for one of our clients.

Intelligent Ingredient System

Whether you’re working with grains, powders, granules, pellets or liquids, how you handle your materials always determines the quality of your final product.

At Horizon Systems we understand the benefits of a well-managed ingredient receiving and handling solution and the headaches that can occur when materials get mismanaged. When your process demands it, our solutions account for accurate recipe creation and batching, consistency and contamination risks. In many cases, having the right blend of materials is the only way to ensure your product has the consistency, durability and effectiveness you require. Our job is to protect your employees, products and brand.

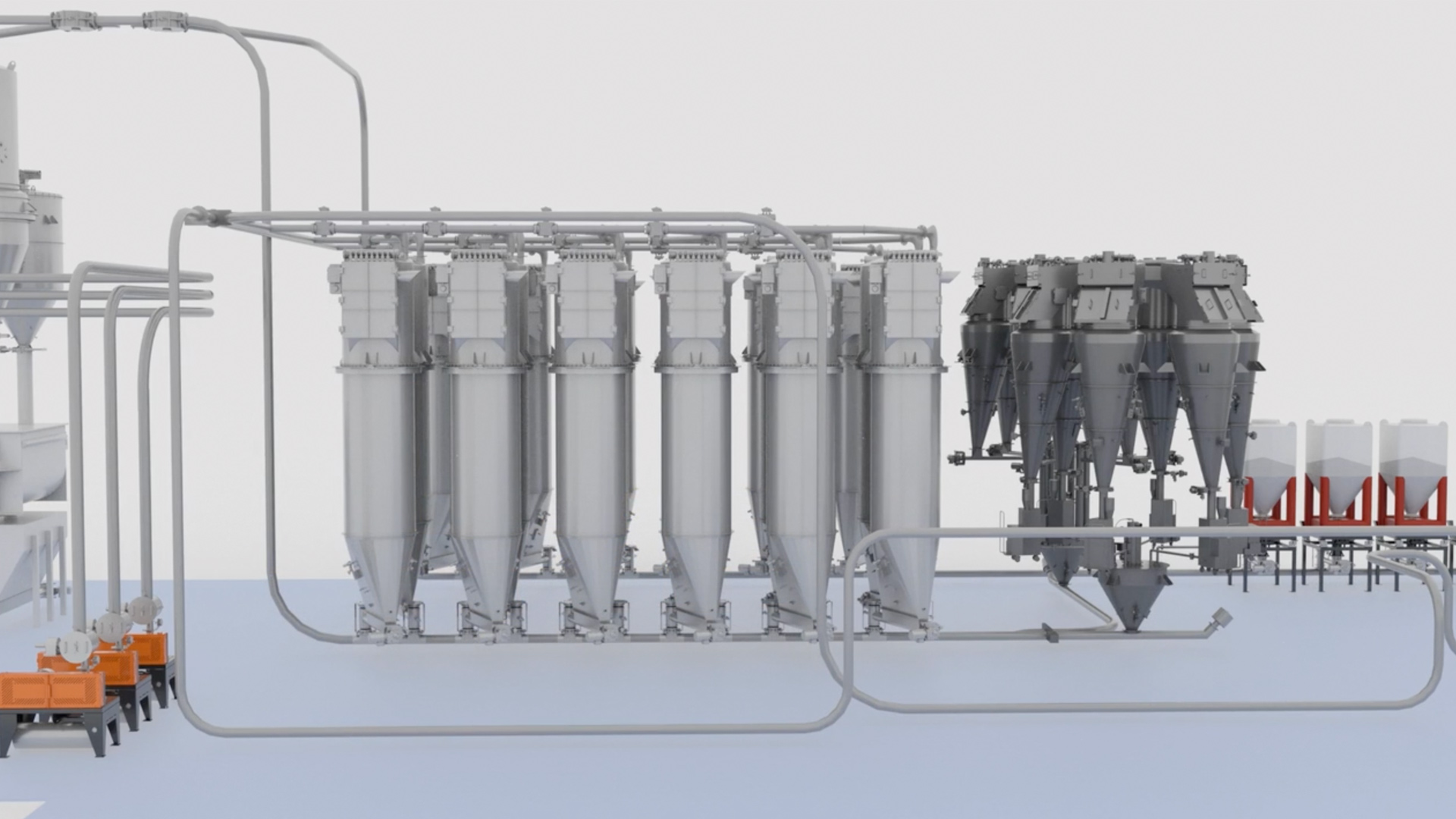

Flexible Ingredient Batching

Discover how our flexible approach to ingredient batching makes it easy to manage multiple recipes and special blends.

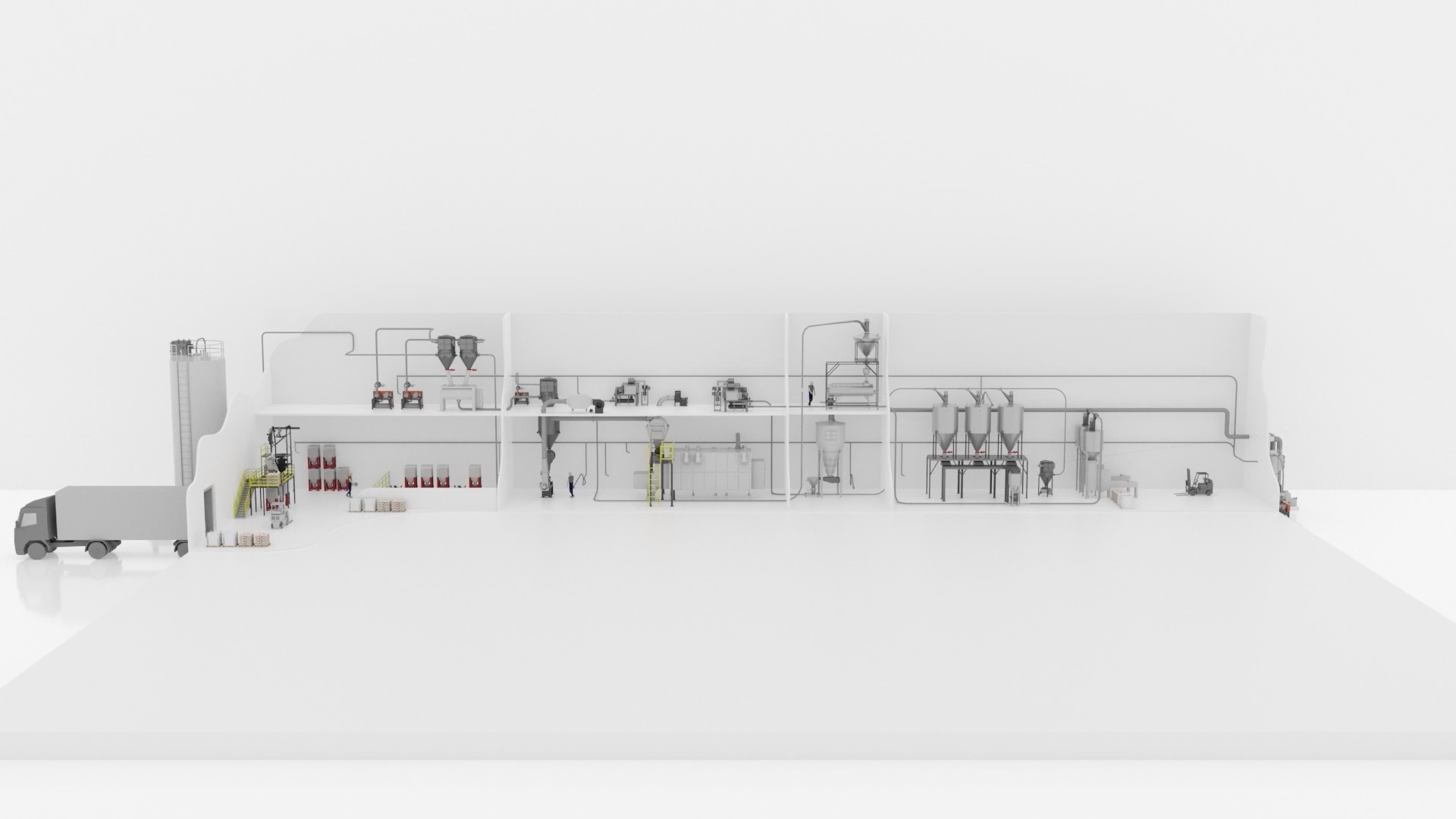

Pet Food Process Flow

Horizon Systems brings innovation to the process of making pet food.

With passive sanitation and facility zoning in mind, our modular Intelligent Ingredient Management system delivers and tracks materials throughout your facility. Our Negative Airlift System and ConTran continuous dense phase transfer technology maintains product shape while reducing breakage and fines. From Easy Clean airlocks to sanitary metal to metal couplings, our equipment is designed to help you keep your process clean.

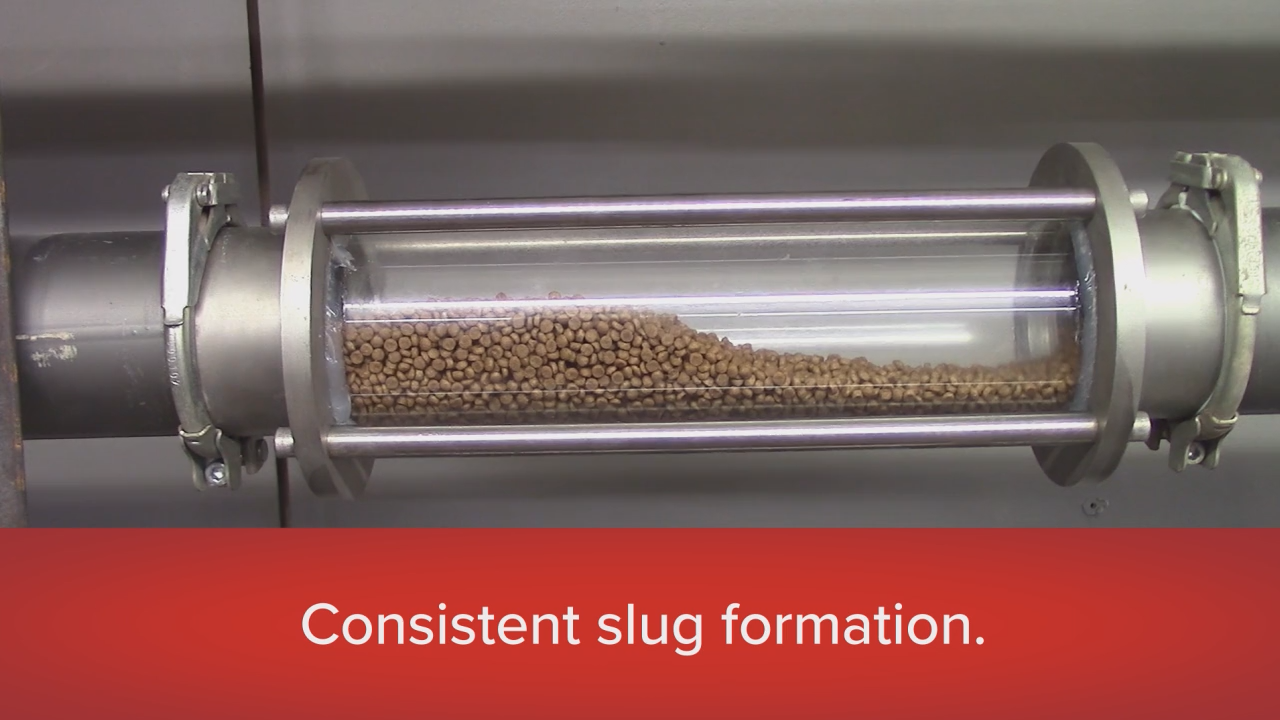

ConTran Continuous Dense Phase Transfer

ConTran gently handles your product at relatively low pressure and high convey rates, resulting in minimal breakage and fines.

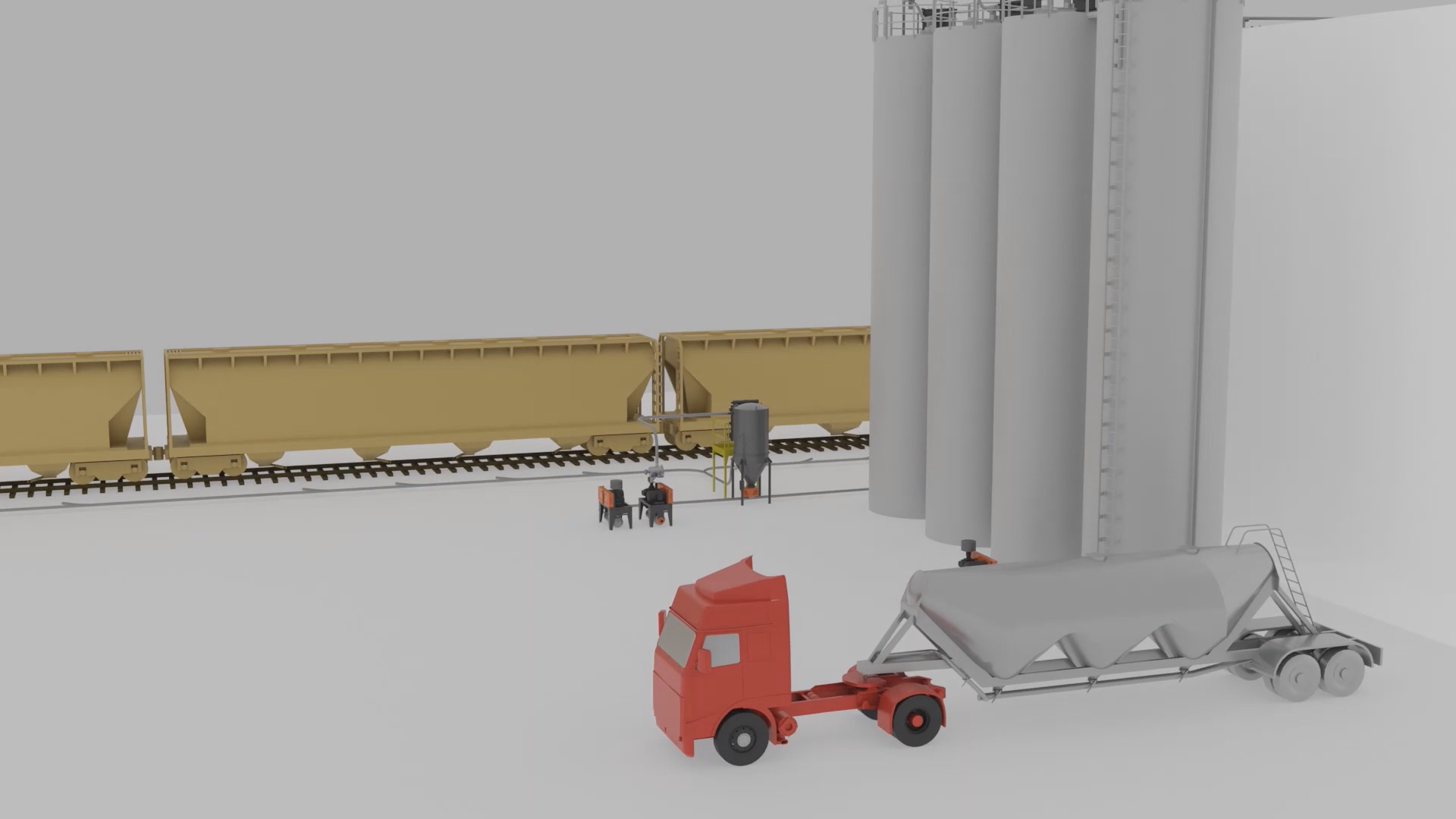

PVC Compounding - Bottom Up Model

Horizon Systems’ bottom-up blend system for PVC compounding (as an alternative to a top-down compounding tower) allows for a lower building head height by housing more equipment at ground level, making equipment easier to service.

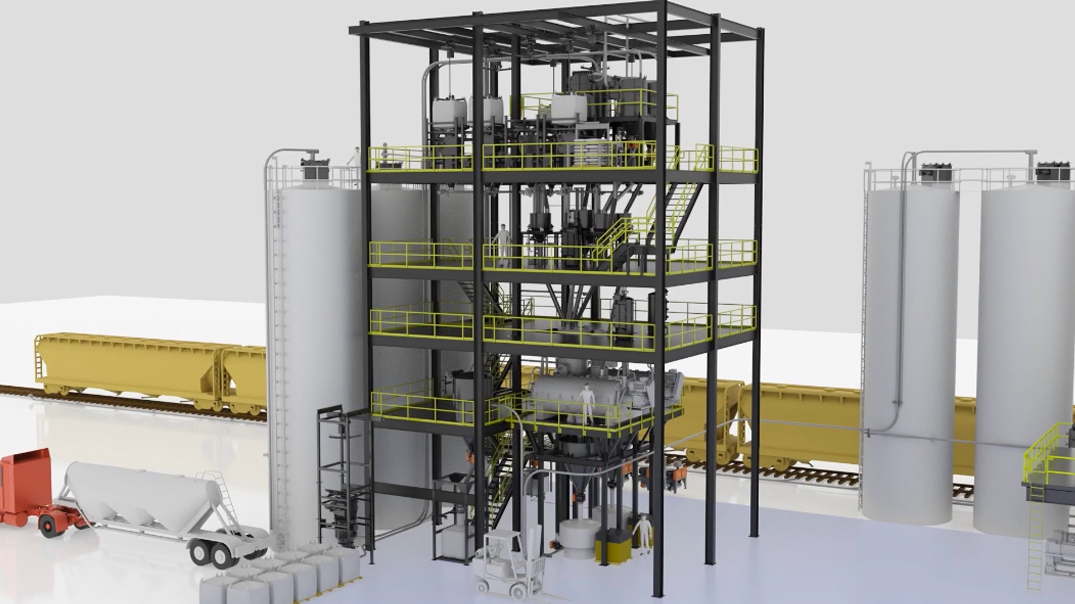

PVC Compounding - Top-Down Model

When designing and building a blending system, accuracy is always a primary consideration.

However, in certain applications like PVC compounding, precision can be especially essential to achieve a perfect end product. PVC compounding typically follows one of two blending methods: top-down or bottom-up. While you can achieve a great product with either model, the top-down approach almost always achieves the best result.

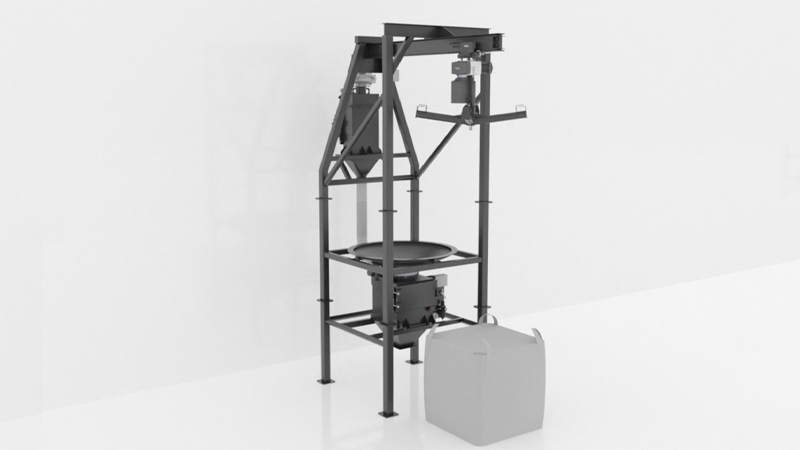

Bulk Bag Discharger Options - Hoist, Monorail or Forklift Load

Horizon Systems offers three base options for bulk bag unloading based on how you deliver bulk bags to discharge stations.

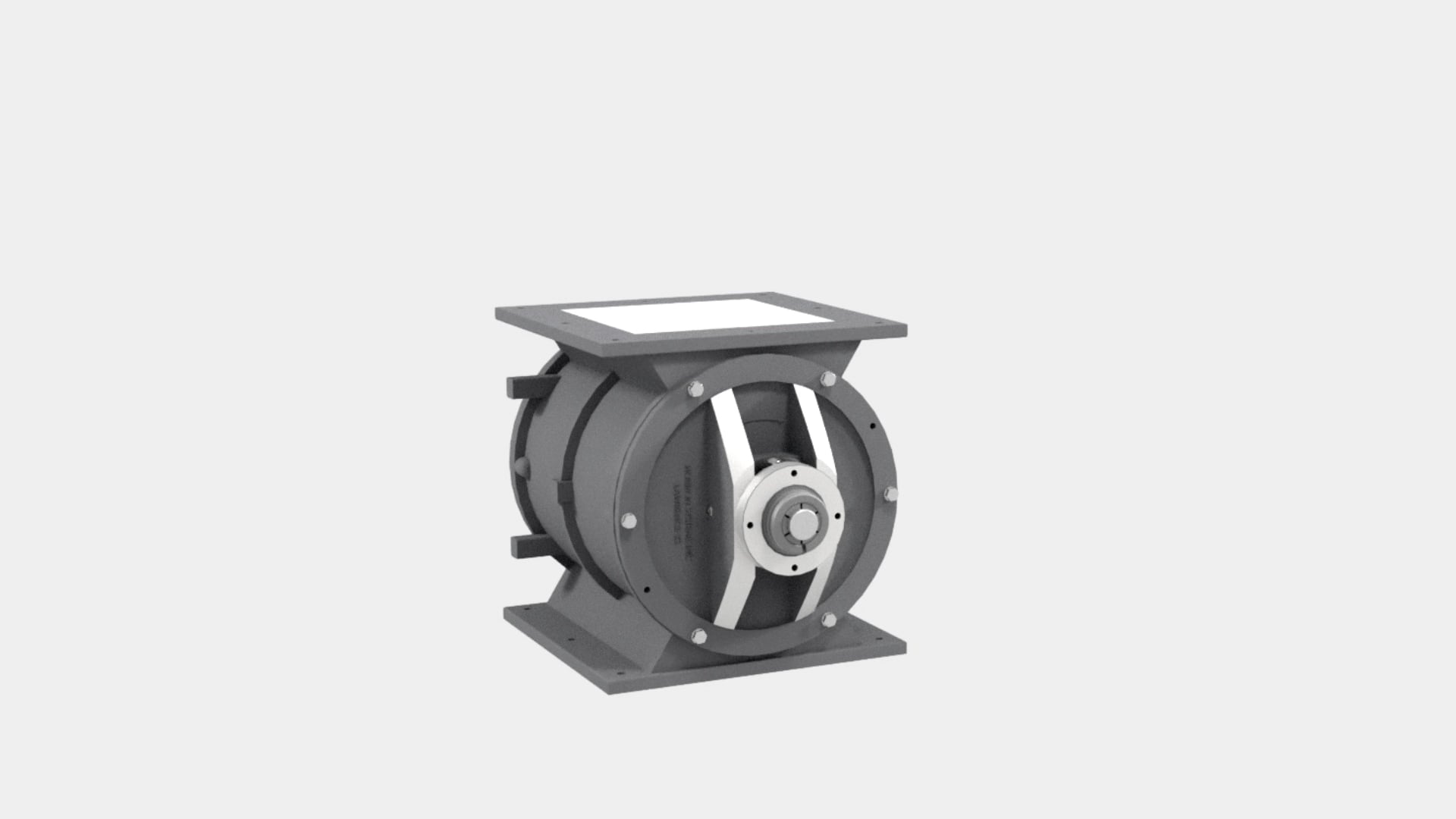

Airlock Rebuild Program - Rebuild Process

Stay prepared and manage your airlock inventory by having a spare airlock on the shelf and be sure to have a trusted partner for when you need repairs.

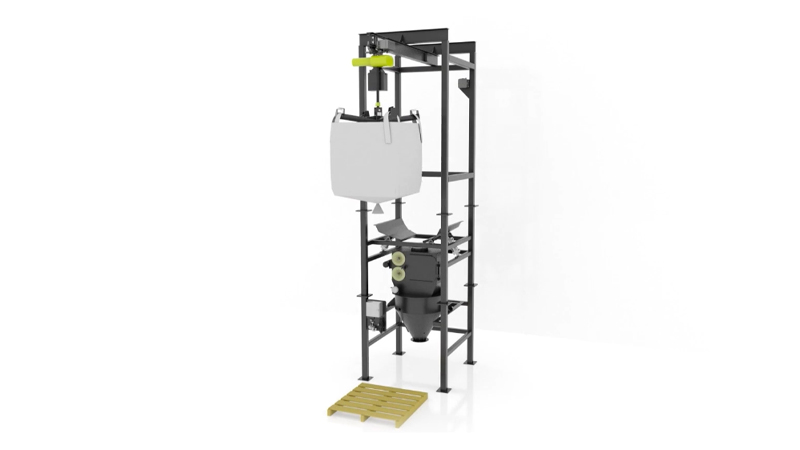

Bulk Bag Discharger - Integrated Filter Option

The BBD-IF option is available with the same equipment choices as our other Bulk Bag Discharger series – monorail loading, Forklift or hoist load configuration, but with a more accessible filter for easier maintenance.

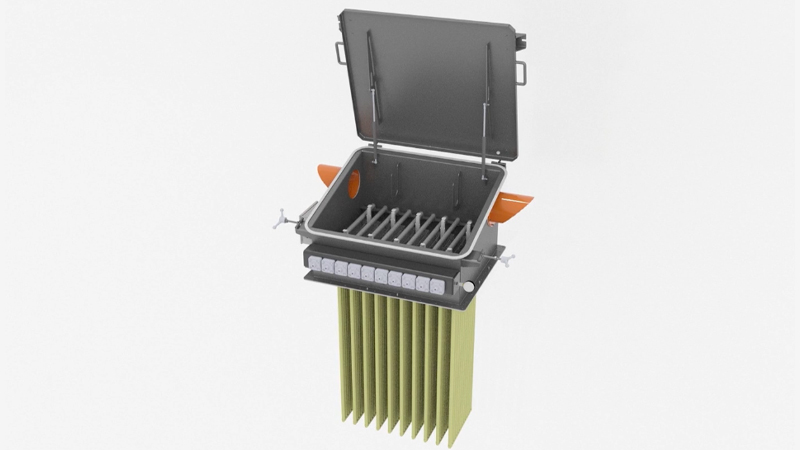

Insertable SideWinder Vent Filter

Featuring top loading filter media, easy access to media, less downtime for maintenance and no need for confined space permits, this is possibly the most maintenance-friendly filter available in the industry.

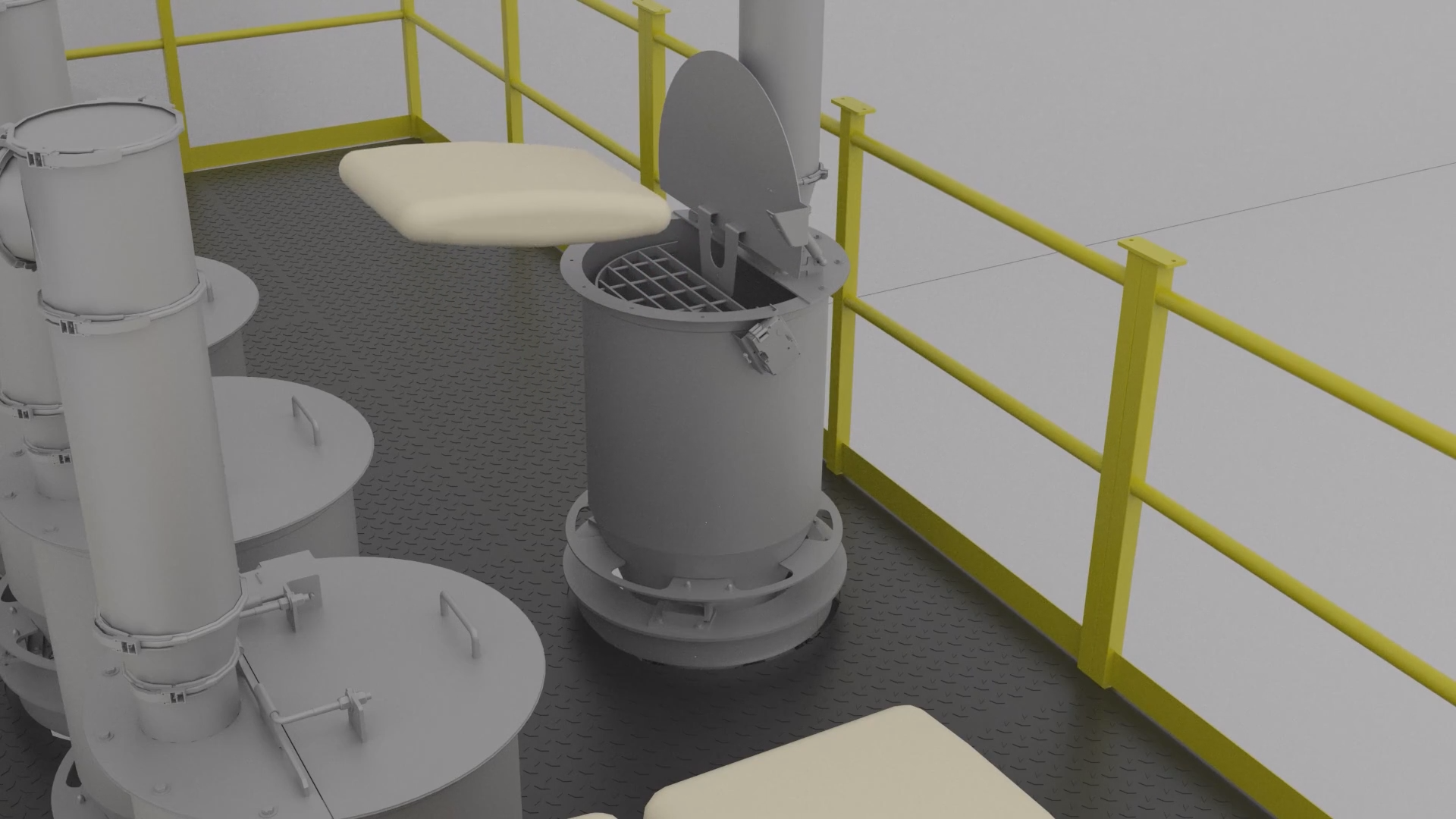

Minor Ingredient Weigh Station

Our Minor Ingredient Weigh Station offers a single destination or custom bin cluster to house our Kleenfeed Screw Feeders. Use it independently as part of a series of bins and feeders for added flexibility in your automated material handling solution.

Minor Ingredient Weigh Station Detail

A detailed view of this weigh station’s inner workings. Offering a single destination or custom bin cluster to house our Kleenfeed Screw Feeders.

Rigid Intermediate Bulk Container Discharge Station

This RIBC discharge station combines a rigid poly or stainless-steel intermediate bulk container storage with our KleenFeed Screw Feeder for a completely customizable access solution.

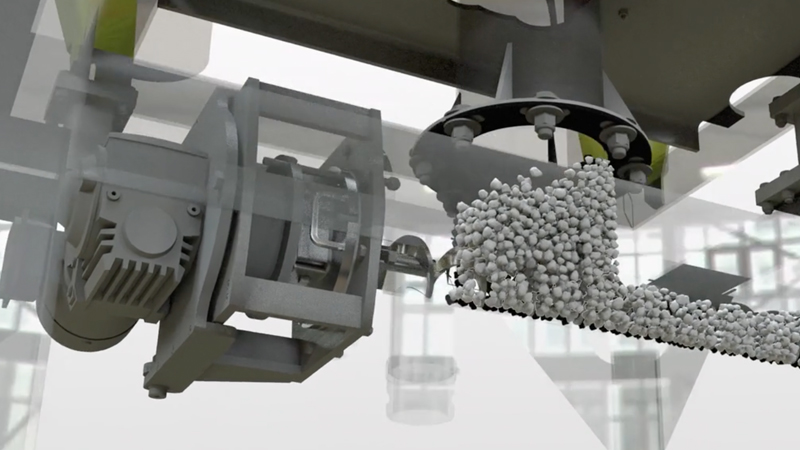

Rigid Intermediate Bulk Container Discharge Station Detail

A detailed view of our RIBC discharge station, offering a modular design that can be used as an independent component or part of a series of feeders.

Rigid Intermediate Bulk Container Loading Station

Our RIBC Loading Station utilizes bulk bag dischargers to transfer materials from bulk bags to RIBCs, which can be used independently as a storage vessel before and after a batch, or as an access point in production.

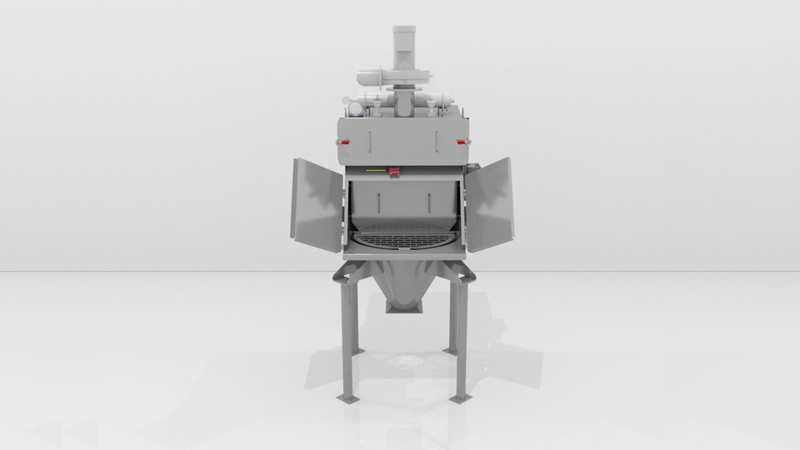

Sanitary Small Bag Dump

Our Small Bag Dump IDCU Series features ergonomically designed access doors that are easy to open and close and an easily accessible filter that makes maintenance and filter replacement safer.

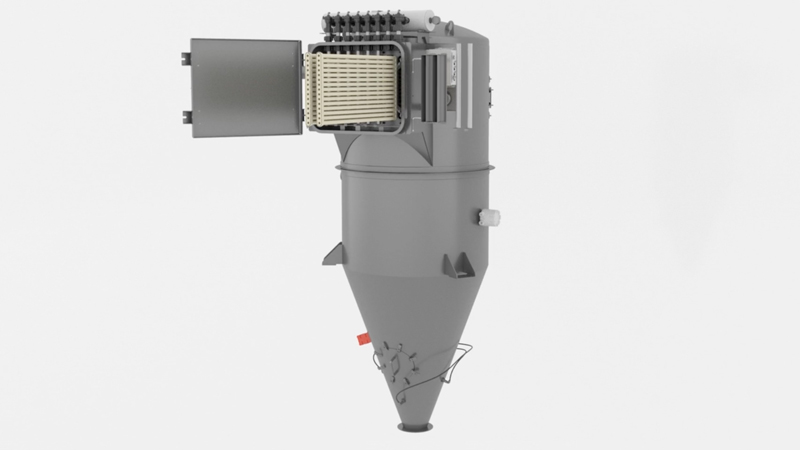

SideWinder Filter/Receiver

Horizon Systems’ SideWinder filter/receiver features an easy open clean air plenum for side access to the top removal style, self-supporting filter cartridges.

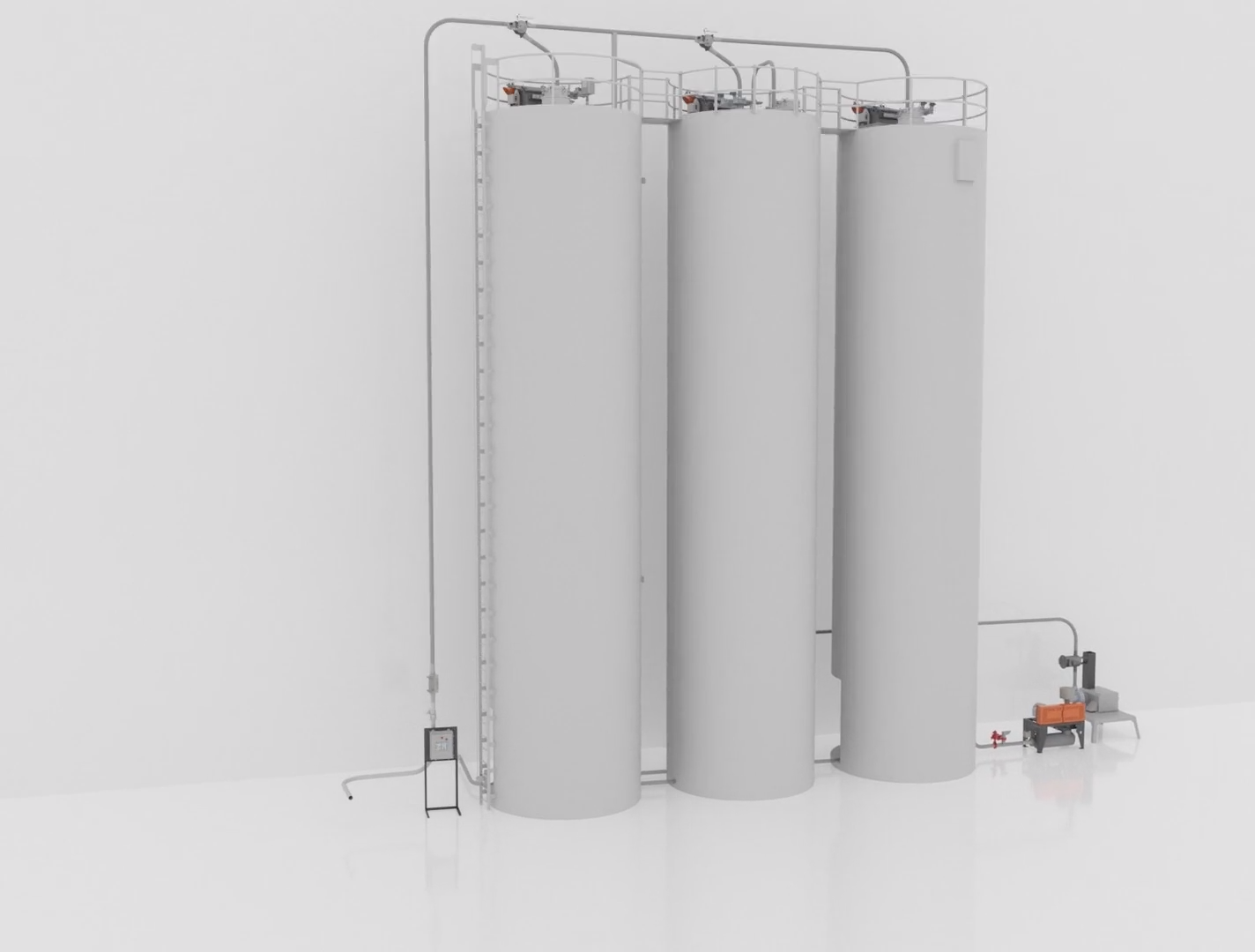

Silo Discharge Options

Accessing bulk ingredients stored in silos requires different discharge options based on material characteristics. Horizon Systems offers three convenient configurations – Bin Activator, Twin Screw, and Fluidizer Bed.

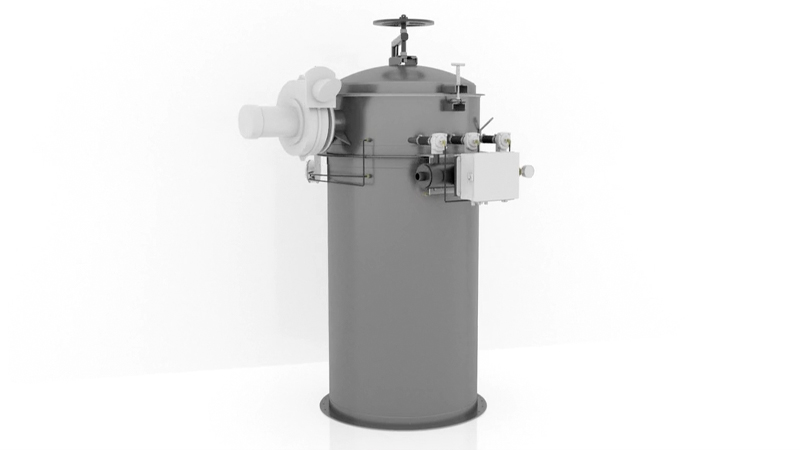

Filter/Receiver RFTC Series

The Filter/Receiver RFTC Series has a quick release of the pivoting top plenum which provides easy access to the top removal style filter cartridges.

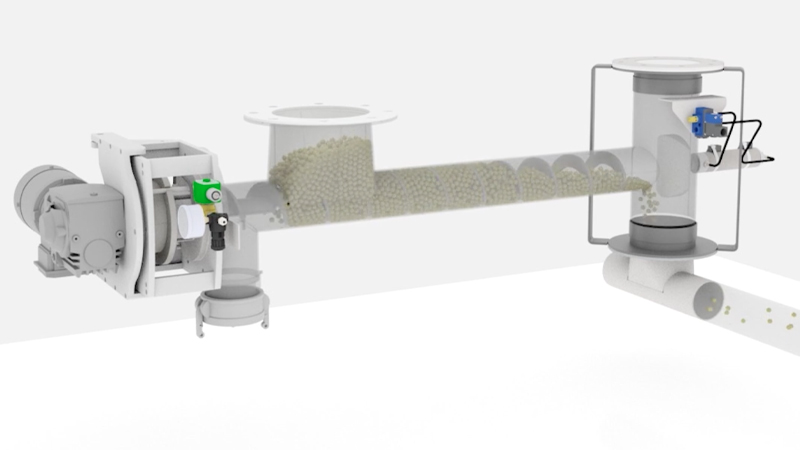

KleenFeed Screw Feeder

Watch how to easily dismantle and reassemble the Horizon Systems KleenFeed Screw Feeder for easy cleaning of internal parts, including loading a rigid intermediate bulk container (RIBC) into a feeder stand.

KleenFeed Screw Feeder Animation

Vacuum Spray Cooling Tank

Horizon Systems’ spray tank offers efficiencies over vacuum spray tanks by using adjustable, high-pressure spray nozzles to deliver a continuous, evenly distributed water spray to cool the product. It can then be cut and handled quickly without affecting its shape.

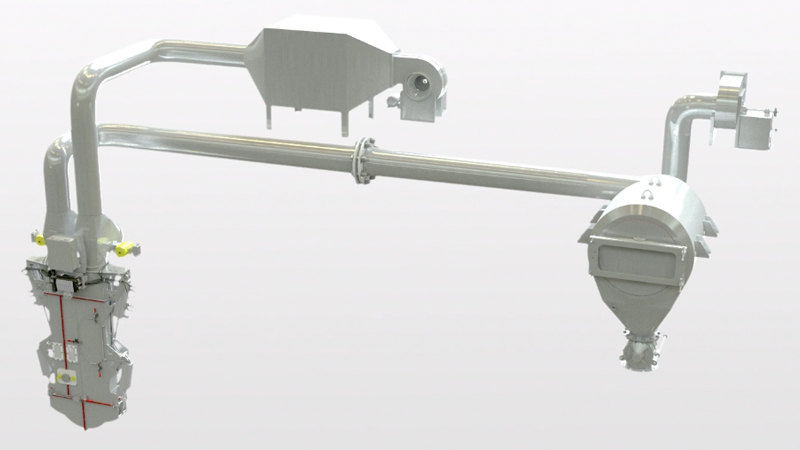

Negative Airlift System - with KleenLift Extruder Hood

If maintaining product shape, reducing fines and keeping your process clean is important to you, then the Negative Airlift System by Horizon Systems is worth a look.

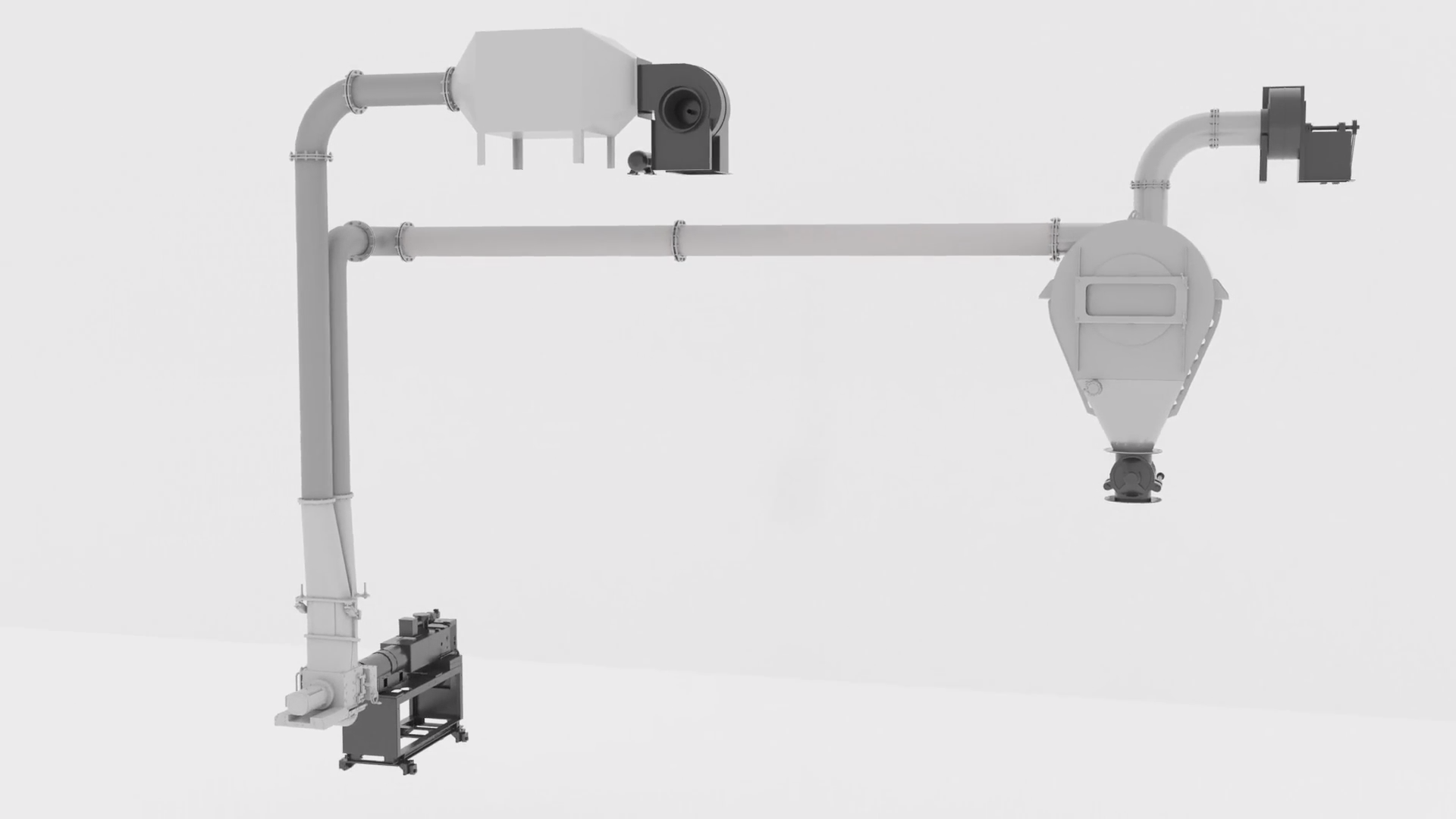

Negative Airlift System with Frazer-Nash Sanitary Extruder Hood

We’ve partnered with Frazer-Nash Manufacturing to offer their best-in-class Sanitary Extruder Hood as an option on our Negative Airlift Systems. Together, they work seamlessly to deliver the best in sanitation and ease of use.

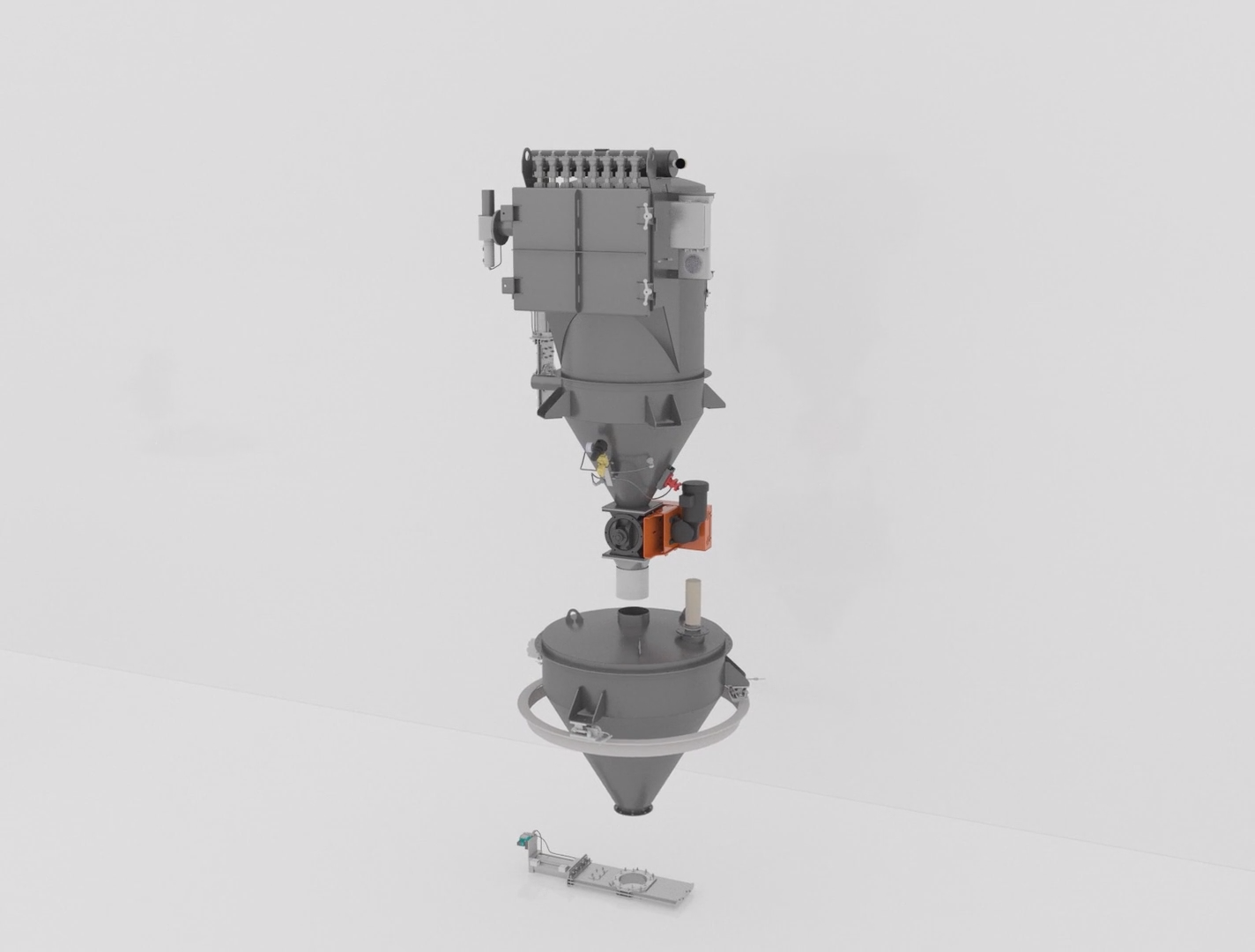

SideWinder Filter/Receiver Options

All the SideWinder filter/receivers can be serviced without enclosed space procedures and are available for a wide number of arrangements including placement on load cells and in conjunction with scale hoppers, fluid flow hopper or cartridge filters.

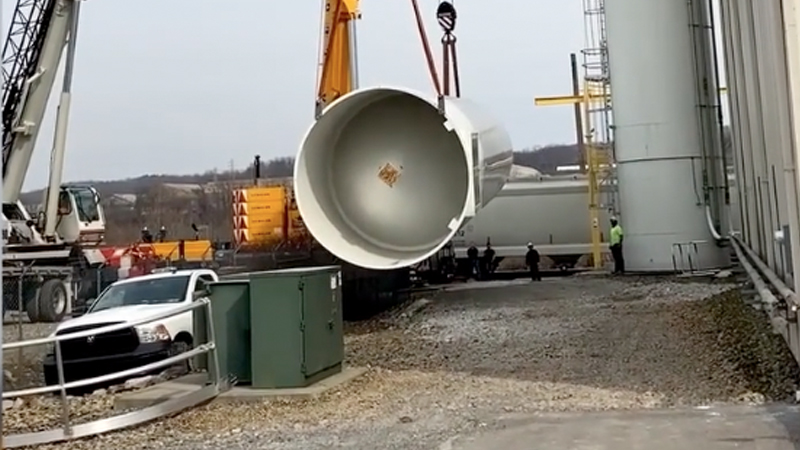

Silo Installation

Transporting, erecting and securing silos requires a level of coordination that only experience can bring.

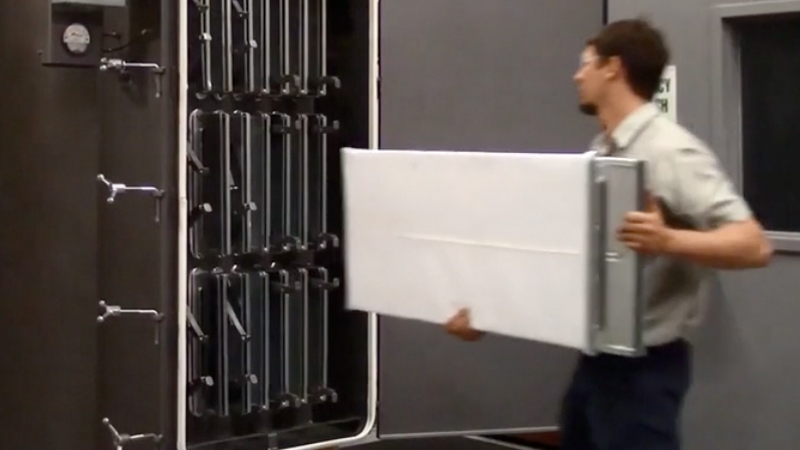

SideWinder Filter Change

Watch how to change the filter media for the DL Series of the Sidewinder Filter Receiver.

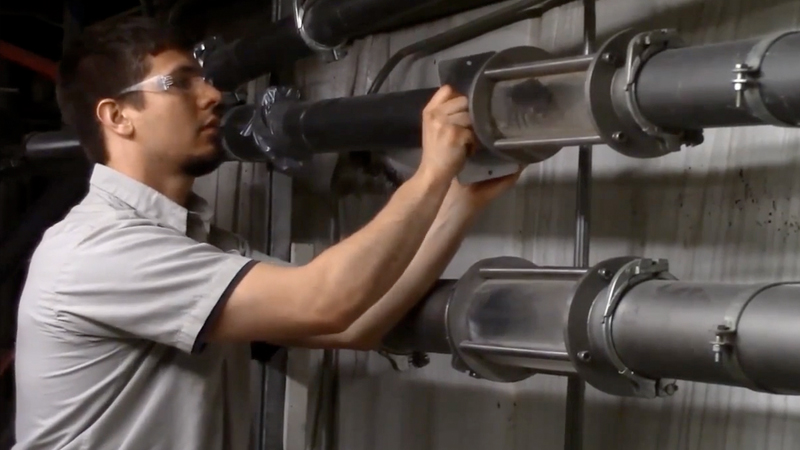

Checking for Line Leaks

Watch how to check for line leaks in pressure and vacuum systems.

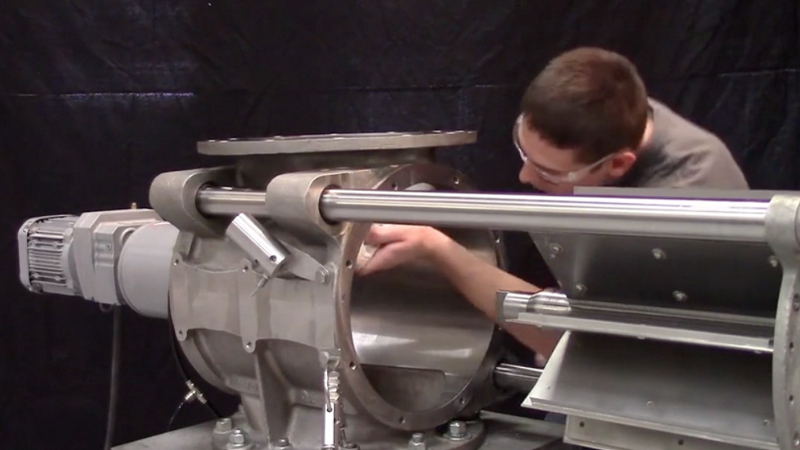

Easy Clean Airlock Maintenance

Maintain your Easy Clean Airlock from Horizon Systems with these easy steps.

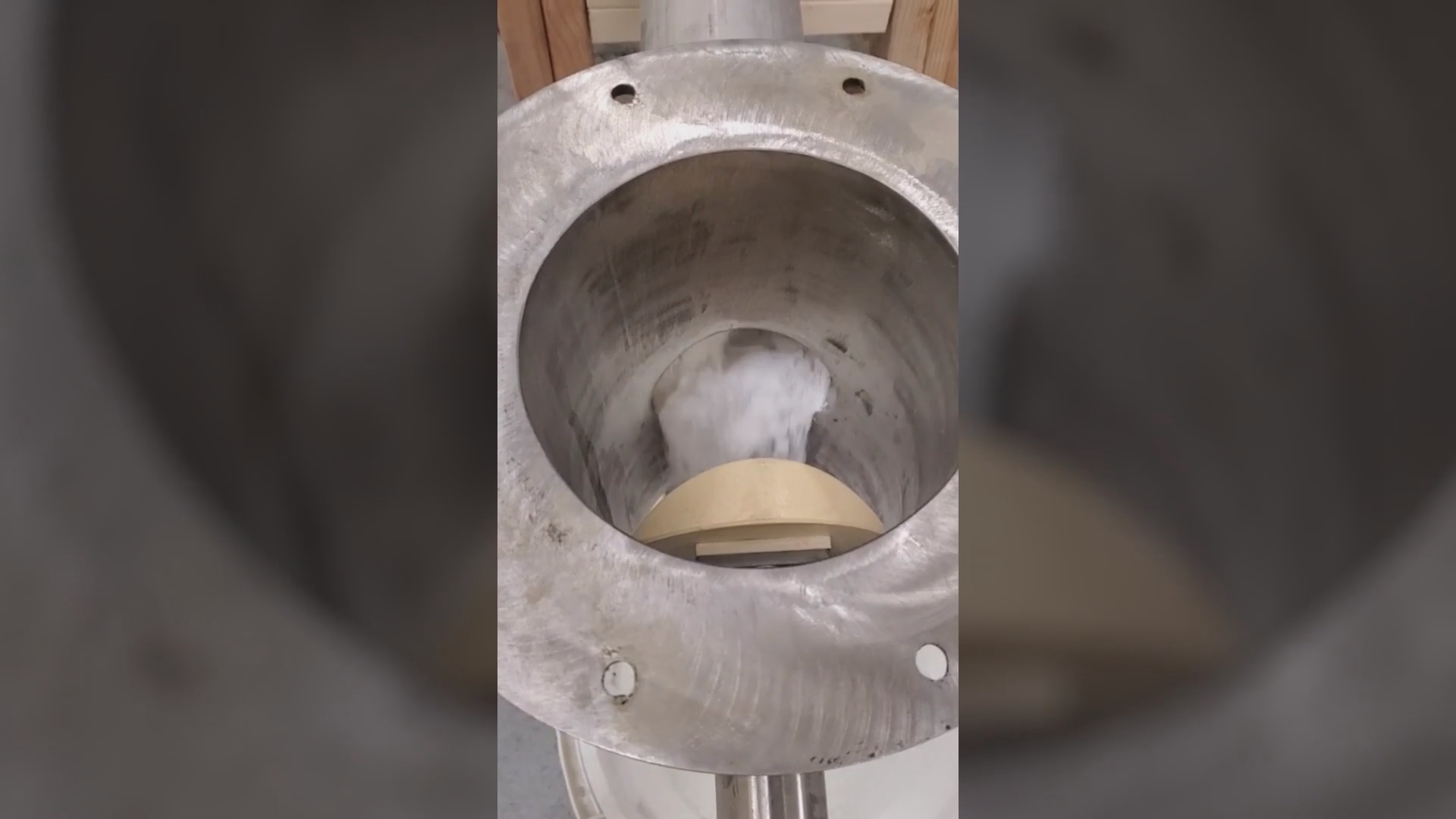

Titanium Dioxide Screw Feeder & Flow Liner Hopper Testing

Horizon Systems specializes in bulk material transfer systems which include PVC Resin Blend systems that are ideal for use with Titanium Dioxide (TiO2) to ensure consistent feeding.
