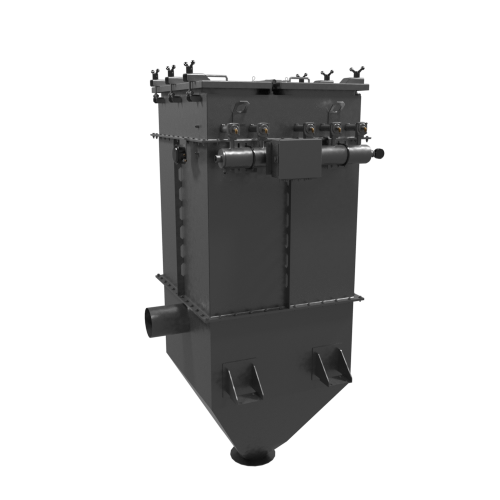

This filter has a hinged top plenum which provides easy access to the top removal style filter cartridges. The filter media is a Spun Bonded Filter Cartridge with 45 pleats per element. No support cage is required.
STANDARD FEATURES
Clean air plenum with clean air outlet stub
Jet pulse cleaning complete with:
Compressed air header and diaphragm valves
Internal air piping
Adjustable pulse timer board and solenoids mounted in a NEMA 4 enclosure
Spun bonded polyester cartridge media with 45 pleats per element
Magnehelic differential pressure gauge with filter
60 Degree hopper with radial inlet (Style 3 only)
Support lugs (Style 3 only)
OPTIONAL FEATURES
Available in carbon steel or stainless steel construction
High entry inlet with baffles to protect bags from direct contact by the product
NEMA 4X or NEMA 7/9 timer enclosure
Support legs
Maintenance access ladder and platform
Inspection/Access opening
Industrial/Food grade epoxy interior
Smooth not Flush (80 grit) or Smooth and Flush (120 grit) weld seams
70 degree hopper slope
Explosion relief vent
Flanged product inlet/clean air outlet
Pulse on demand differential pressure gauge and/or switch
