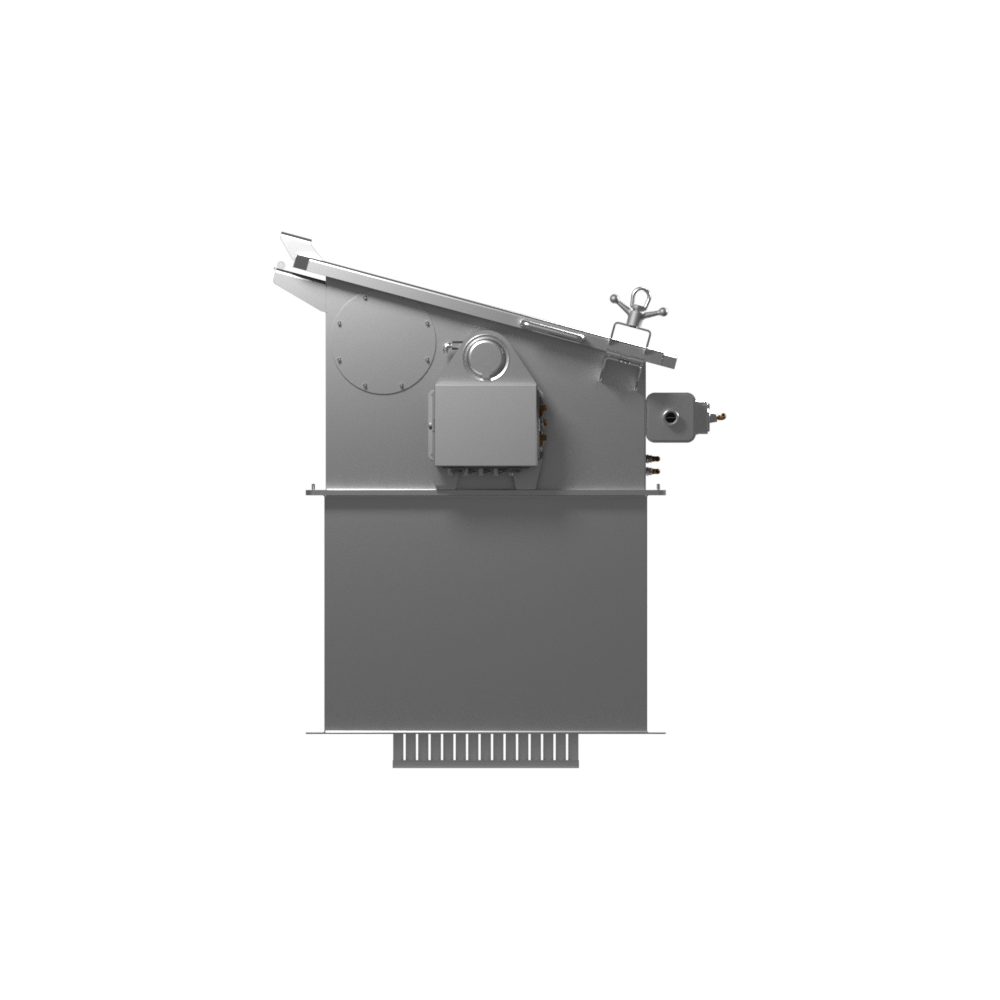

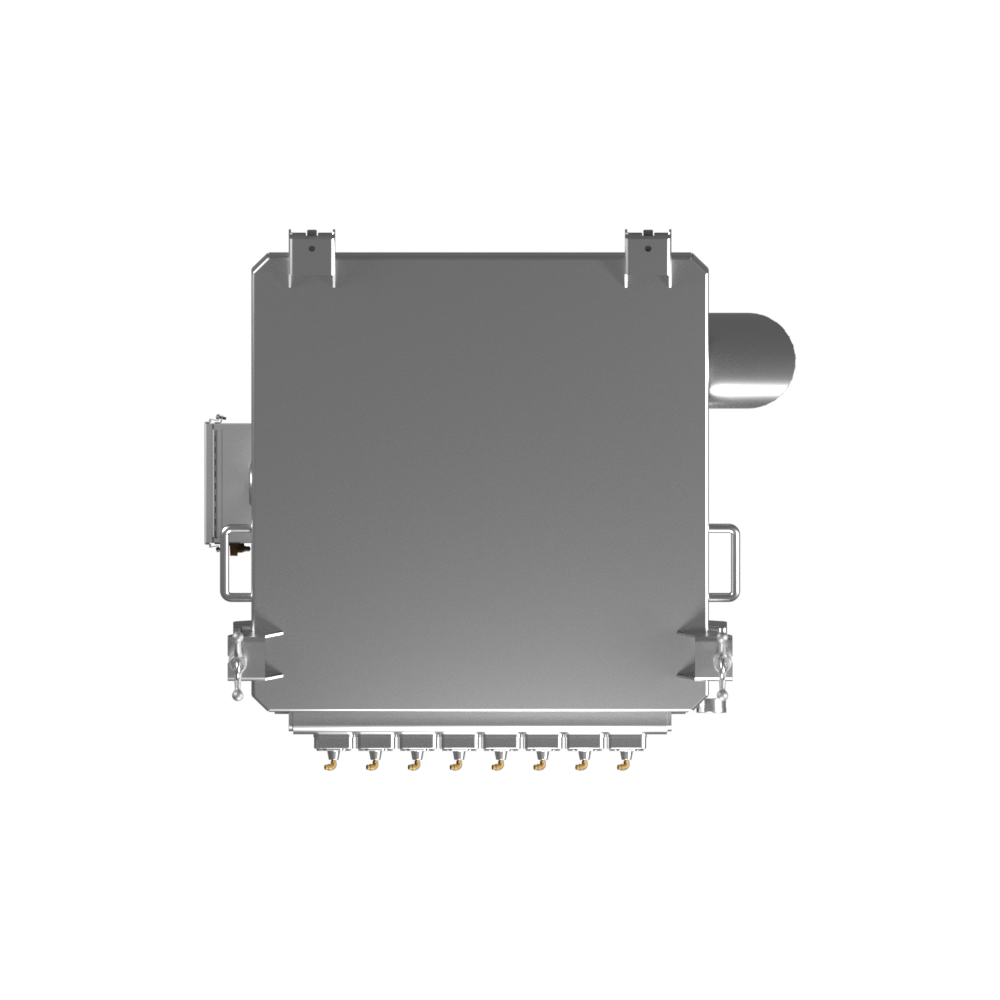

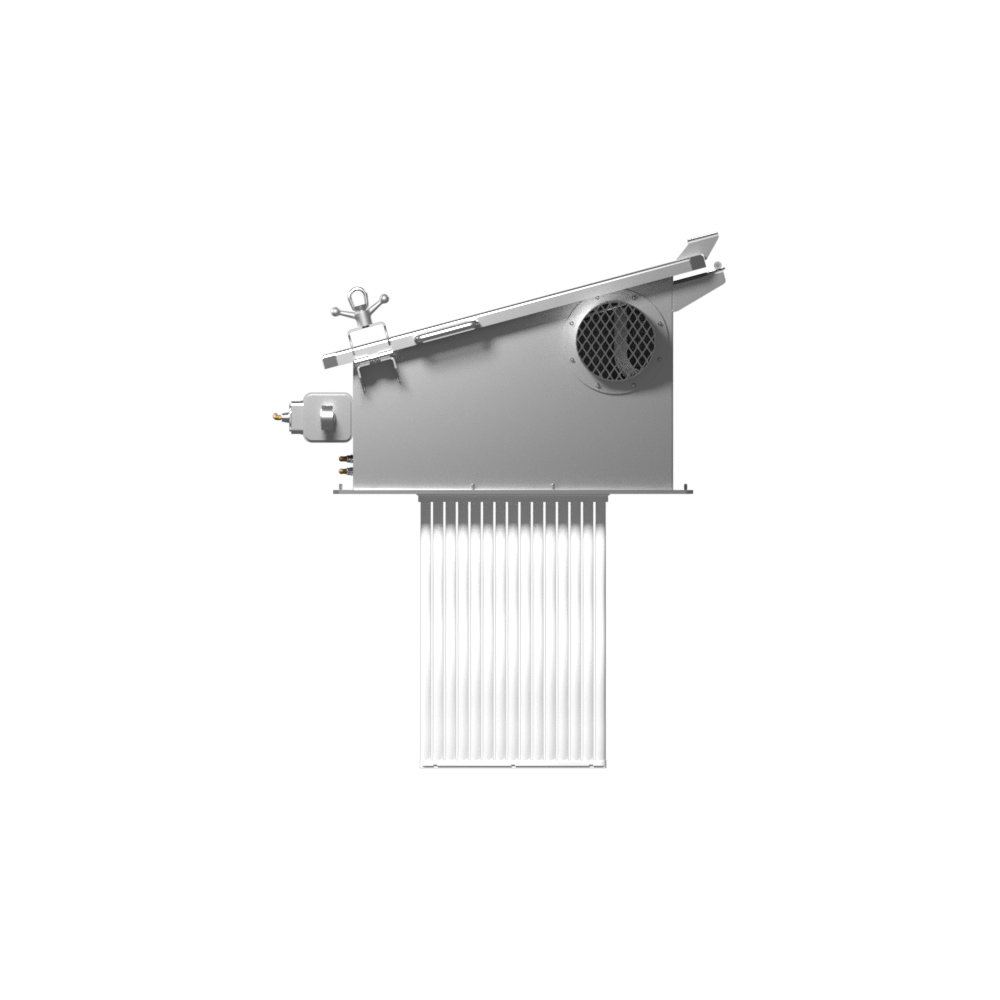

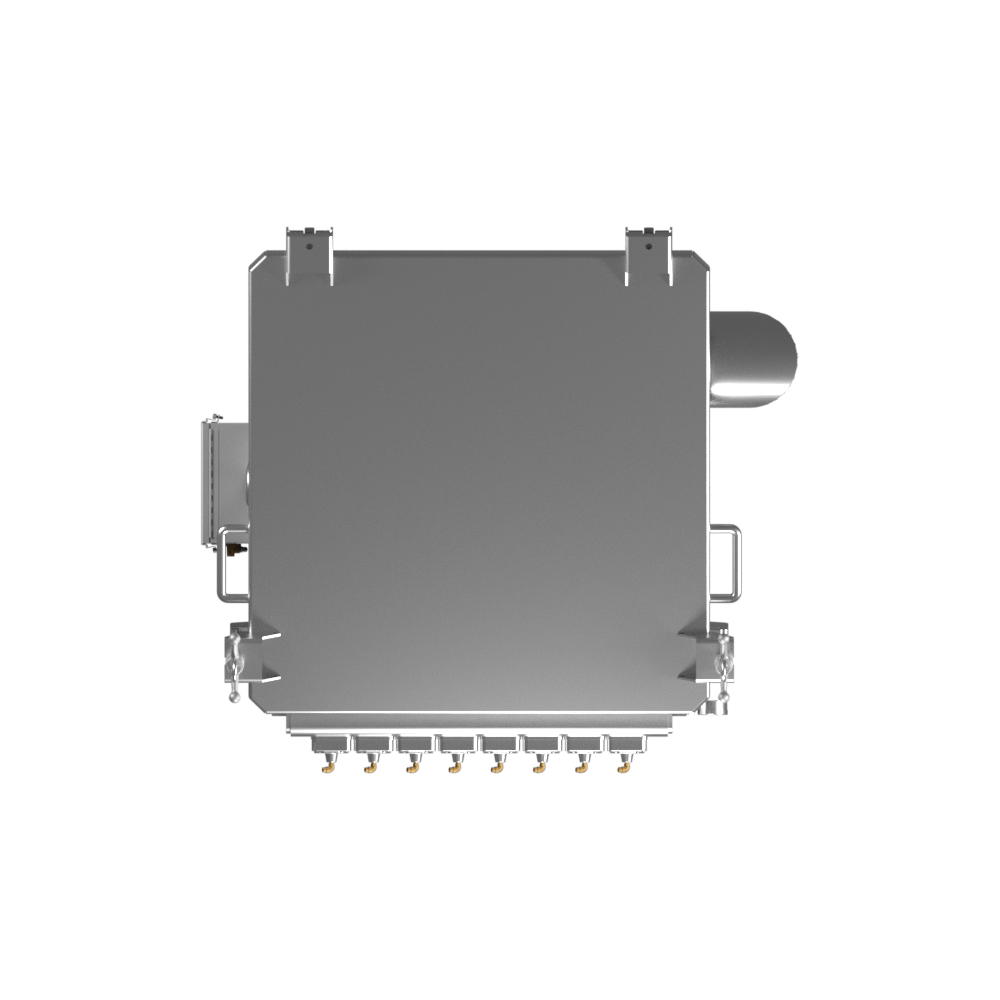

Insertable SideWinder™ – SWI Series

Our Insertable SideWinder® Vent Filter features top loading filter media and offers easy media access, less downtime for maintenance and eliminates the need for confined space permitting. This is perhaps the most maintenance friendly filter available in the marketplace today.

STANDARD FEATURES

  • Quick opening, top mounted, hinged door provides tool-less access to filter media
  • Sloped clean air plenum to allow for water runoff
  • Reverse jet-pulse cleaning complete with a compressed air header and diaphragm valves
  • Adjustable pulse timer board with solenoids pre-mounted in an enclosure
  • Spun bond polyester with PTFE membrane, top removal, filter media that are self-supporting – 99.99% efficiency at ≥ 2 microns
  • Magnehelic differential pressure gauge pre-mounted

OPTIONAL FEATURES

  • 316 or 316L Stainless Steel construction
  • Surface Finishes:
  • Painted STEEL-IT Polyurethane silver or Basalt Gray for carbon steel components
  • Industrial grade epoxy interior for carbon steel components
  • 80 grit with smooth welds or 120 grit with flush welds
  • Enclosure Type:
  • NEMA 4, NEMA 4X or NEMA 7/9
  • Voltage Requirements:
  • 120 VAC or 24 VDC
  • Differential Pressure Gauge:
  • Photohelic gauge with contact switches or 4-20 mA transmitter
