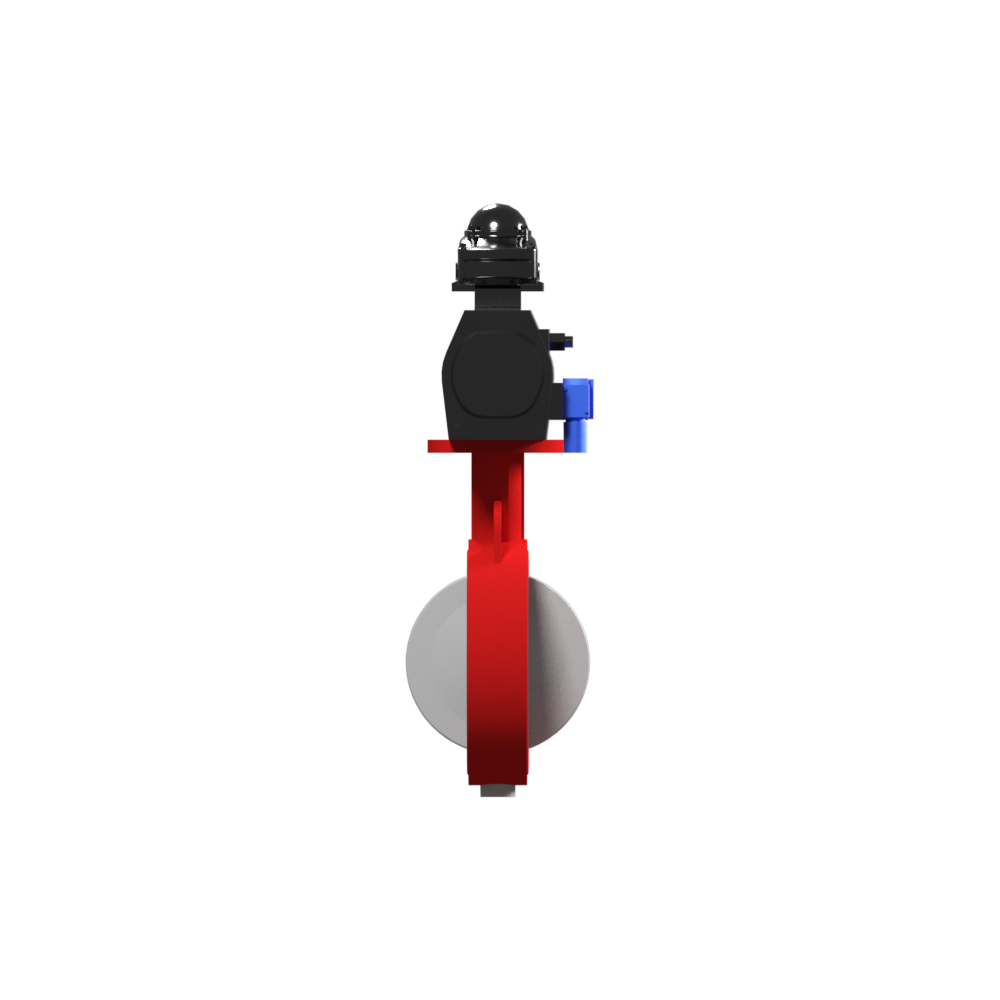

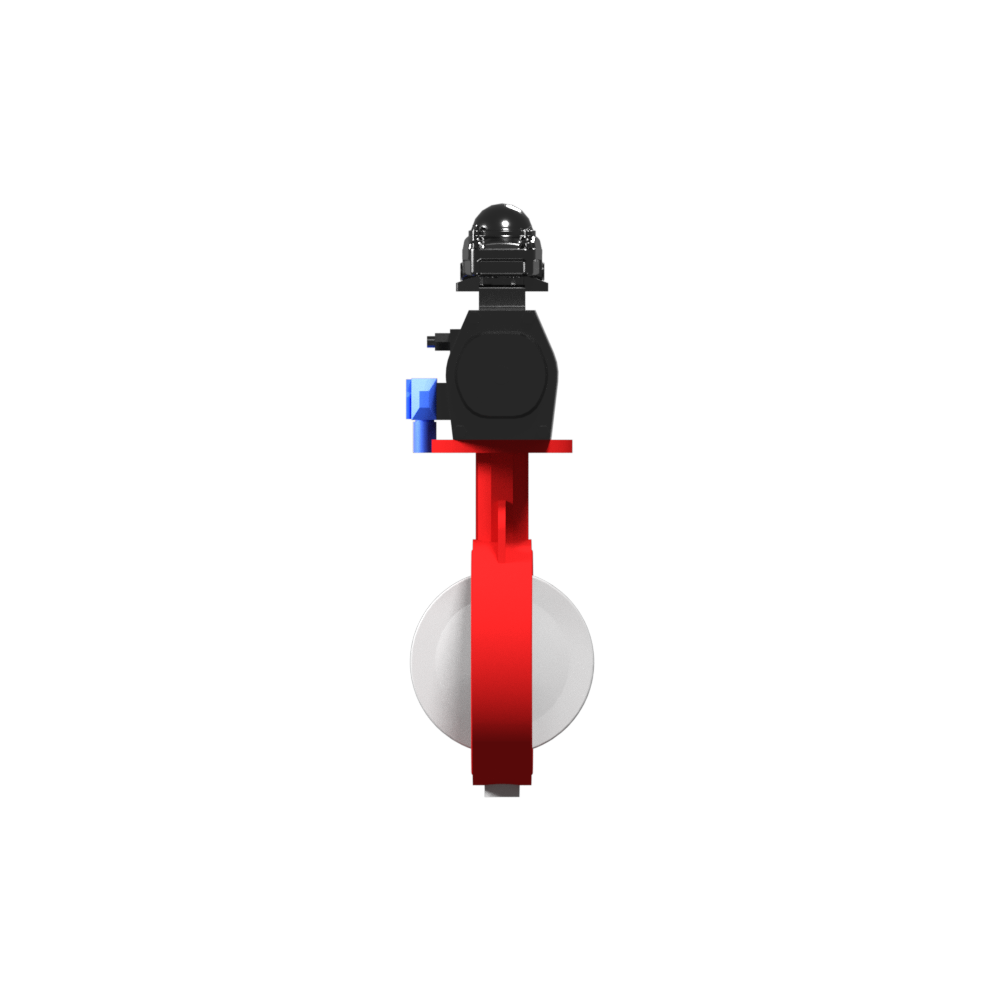

Butterfly Valve BVW Series

This valve is typically utilized in dilute or dense phase pressure or vacuum systems or under atmospheric (gravity) conditions. It utilizes a disc that seals against a seat (Buna-N, EDPM, etc.) in the valve body. It can be used in a variety of material applications including sugar, but should not be used when dealing with abrasive materials.

STANDARD FEATURES

  • N-Series
    • Cast iron, wafer style body
    • Nylon coated, ductile iron disc
    • Stainless Stain stem with acetal bushing and BUNA stem seal
    • EPDM seat
  • S-Series
    • Cast iron, wafer style body
    • Stainless Steel disc
    • Stainless Steel stem with acetal bushing and BUNA stem seal
    • White BUNA seat

OPTIONAL FEATURES

  • Various seat materials available
  • Air or manual operated
  • Single or double solenoid air control valve
  • NEMA 4, or NEMA 7/9 electrical enclosure
  • Lug style body
  • High temperature seat (+400˚F)
