This valve is more affordable than a plug diverter. It can also be used in dense phase conveying, and can be modified for abrasive materials by adding ceramic backing to the inlet.
STANDARD FEATURES
Line connections fabricated of stainless steel, carbon steel, or aluminum
Aluminum frame and flange
304 Stainless Steel diverter blade
Nylon pressure plate seals
Oversized air cylinder with magnetic piston
One (1) single solenoid air control valve, NEMA 4 enclosure
Two (2) SPST magnetic reed position switches, NEMA 6 enclosure
OPTIONAL FEATURES
Electric or hand wheel operated
Double solenoid air control valve
Proximity or mechanical proof switches
NEMA 7/9, TEFC or XP electrical enclosure
316L Stainless Steel product contact

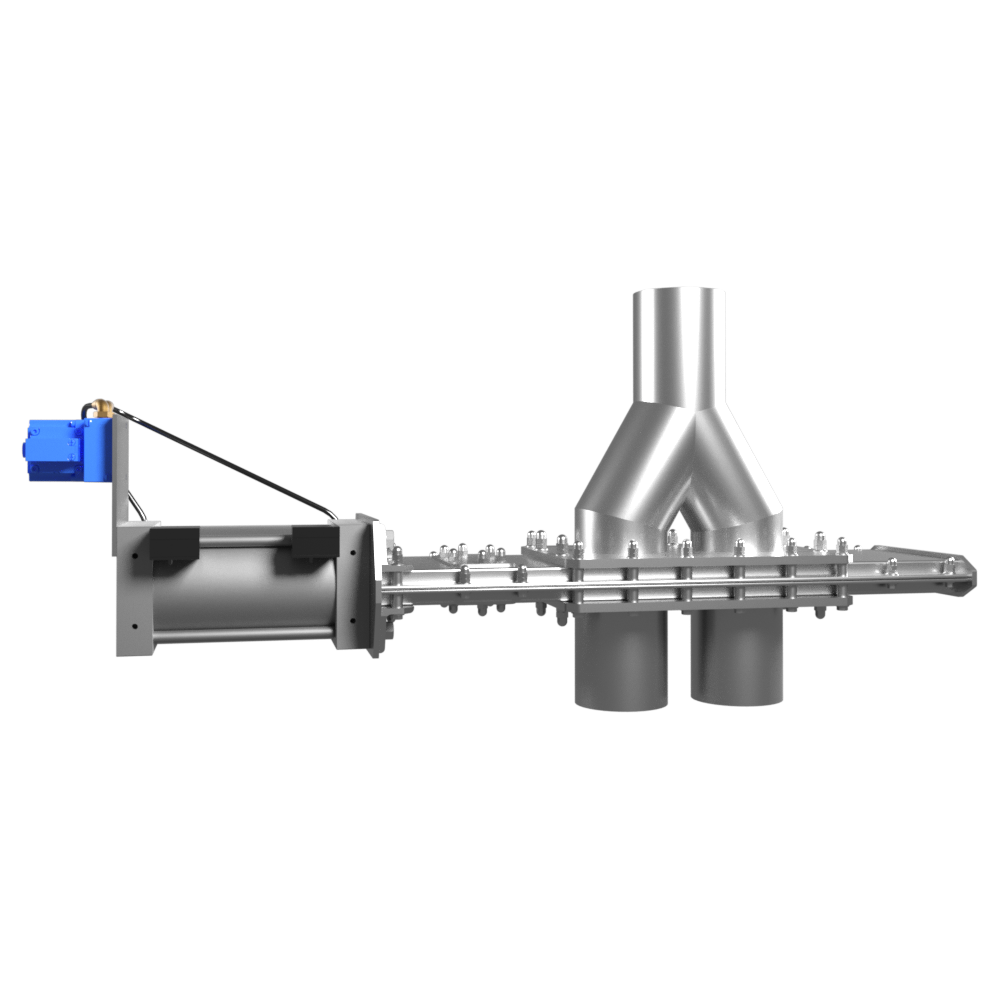

3-Way, 4-Way or Straight Wye configurations available
Flanged inlet/outlet
Water washdown/sticky materials modifications – Electropolished blade with polyester or UHMW seals
