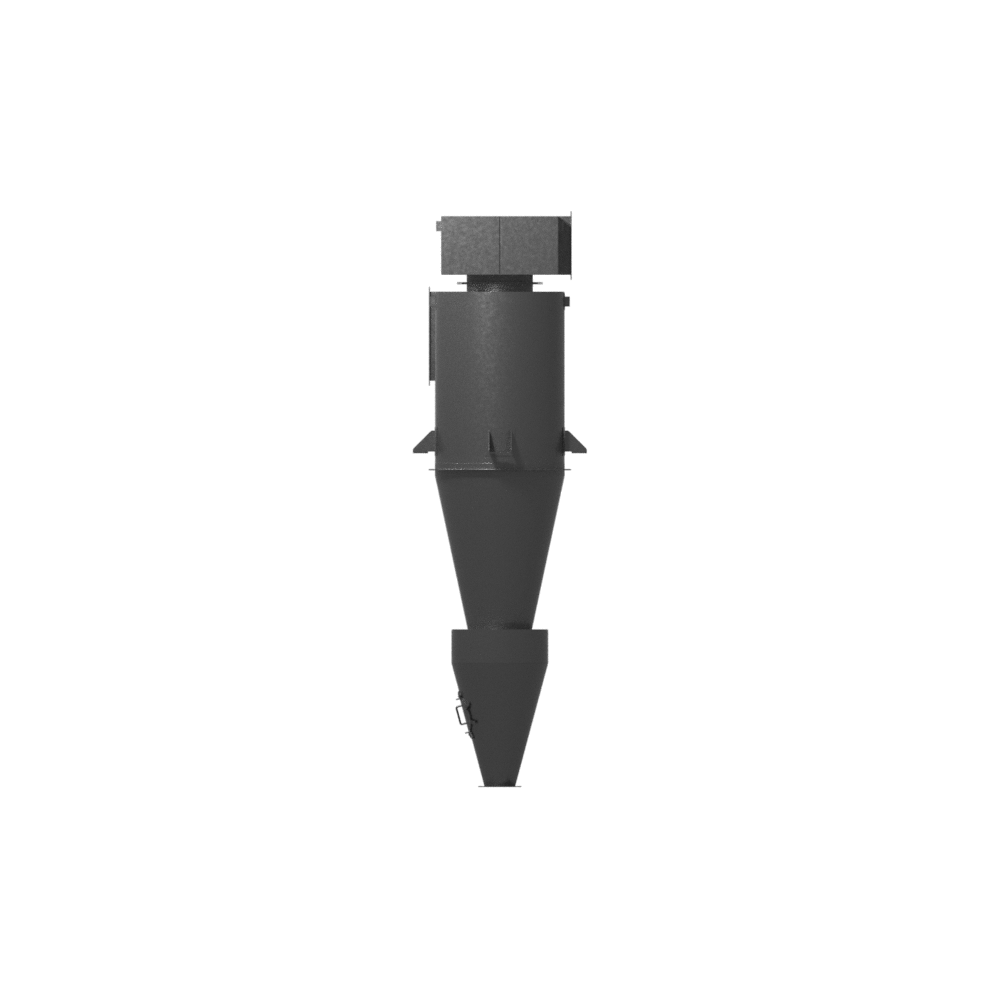

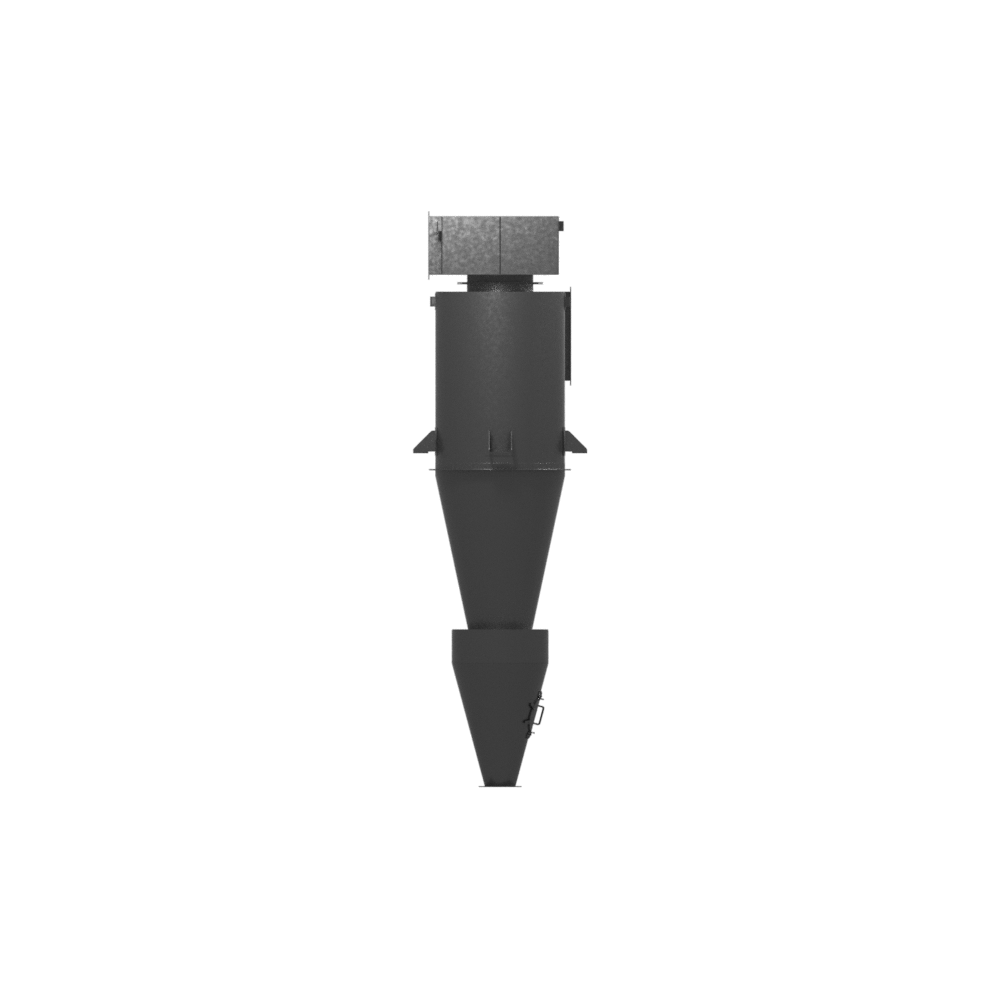

2HE Series Cyclones will have two cyclones and typically will utilize a screw conveyor to push product from one cyclone into an airlock beneath the other cyclone.
STANDARD FEATURES
80 Degree hopper with flanged product discharge
Rectangular inlet
Internal exhaust stack “thimbles”
Lower expansion chamber with 8” diameter inspection opening
Six (6) support lugs
OPTIONAL FEATURES
Available in carbon steel and stainless steel construction
Inlet/Outlet transition
Support legs/structure
Inspection/Access opening
Industrial/Food grade epoxy interior
Smooth not Flush (80 grit) or Smooth and Flush (120 grit)
3HE (3 cyclones) and 4HE (4 cyclones) are also available for larger air volumes
