The Hardy Instruments HI HLPT ADVANTAGE® Series load point assemblies are designed for use on light to medium capacity vessels in tension.
Each ADVANTAGE® line load point consists of a stainless steel, load sensor with true hermetic sealing, and C2® Second Generation Calibration capabilities.
The hardware comes in either stainless or galvanized steel with a grounding strap which helps protect the load sensor from stray ground currents and electrostatic charges.
The HI HLPT is available is the following capacities: 225 LB, 450 LB, 1125 LB, 2.25 KLB, 4.5 KLB, and 11.25 KLB.
“COMPRESSION” Series:

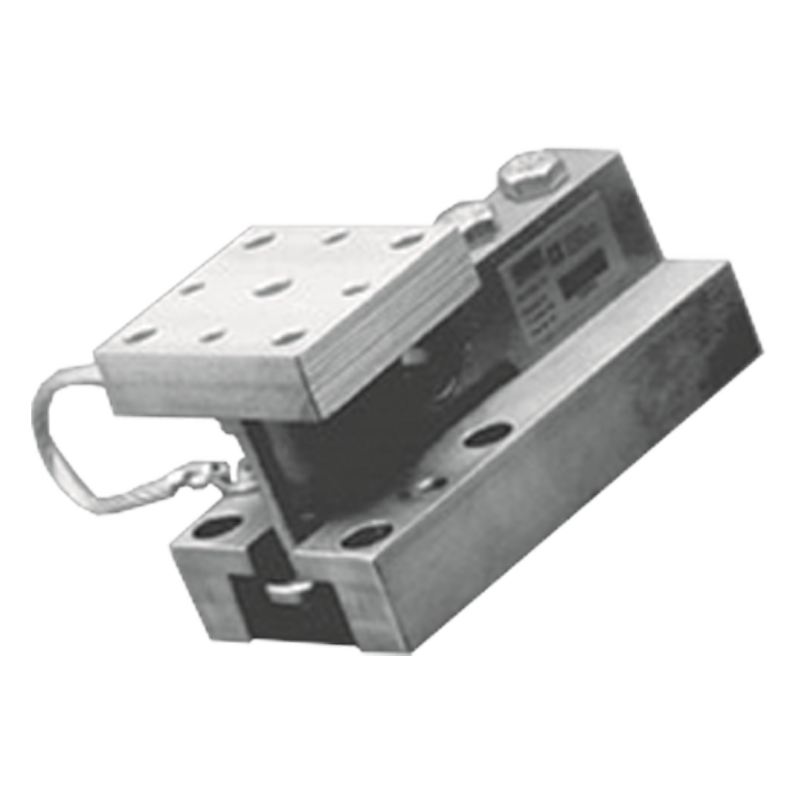

The Hardy Instruments HI HLPT ADVANTAGE® Series and free sliding load point system are designed for use on medium to high capacity vessels.
Each ADVANTAGE® line HI HLPS Series load point consists of a stainless steel load sensor with true hermetic sealing, C2® Second Generation Calibration capabilities and a 1/4 NPT conduit adaptor.
Each pre-assembled, low profile load point system provides anti-lift off protection and consists of three mount types specifically designed to eliminate the effects of unwanted forces to provide exceptional accuracy.
A grounding strap and fixed color code wiring label is provided with each load point.
The mounting hardware is available in either stainless or galvanized steel.
