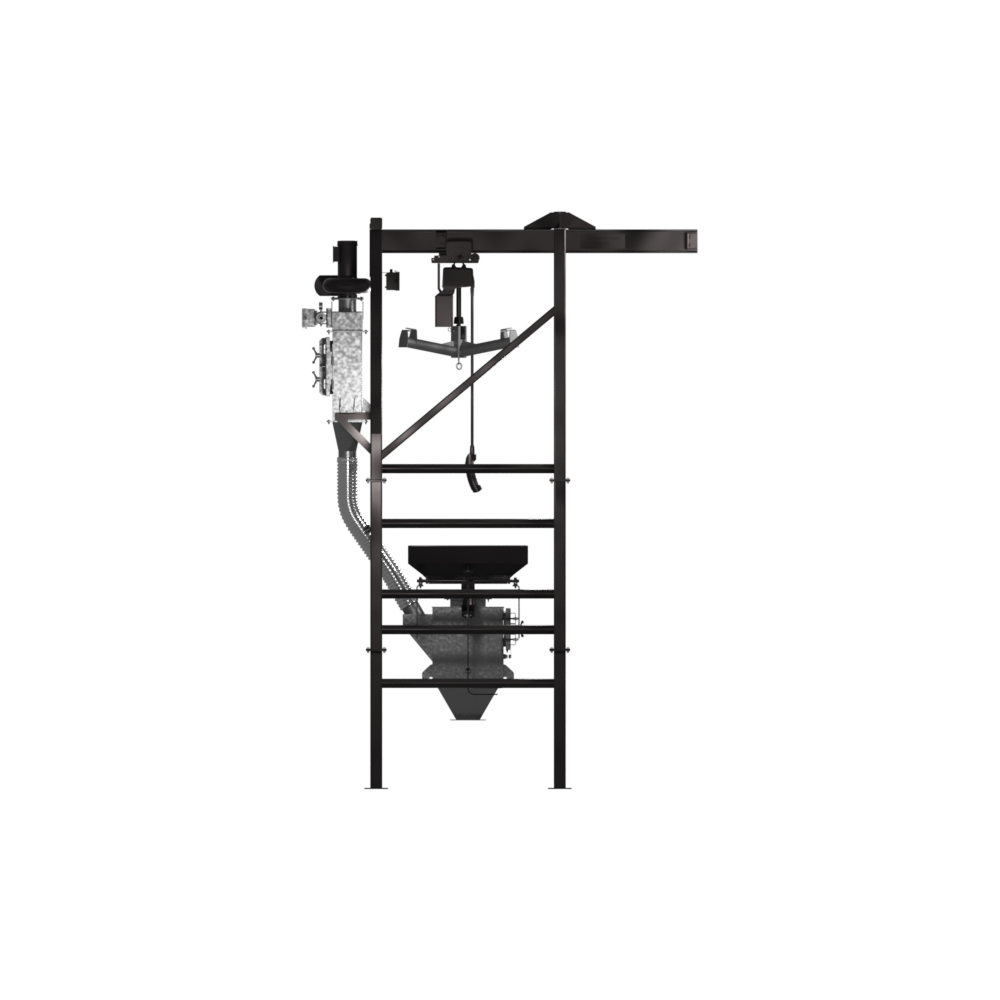

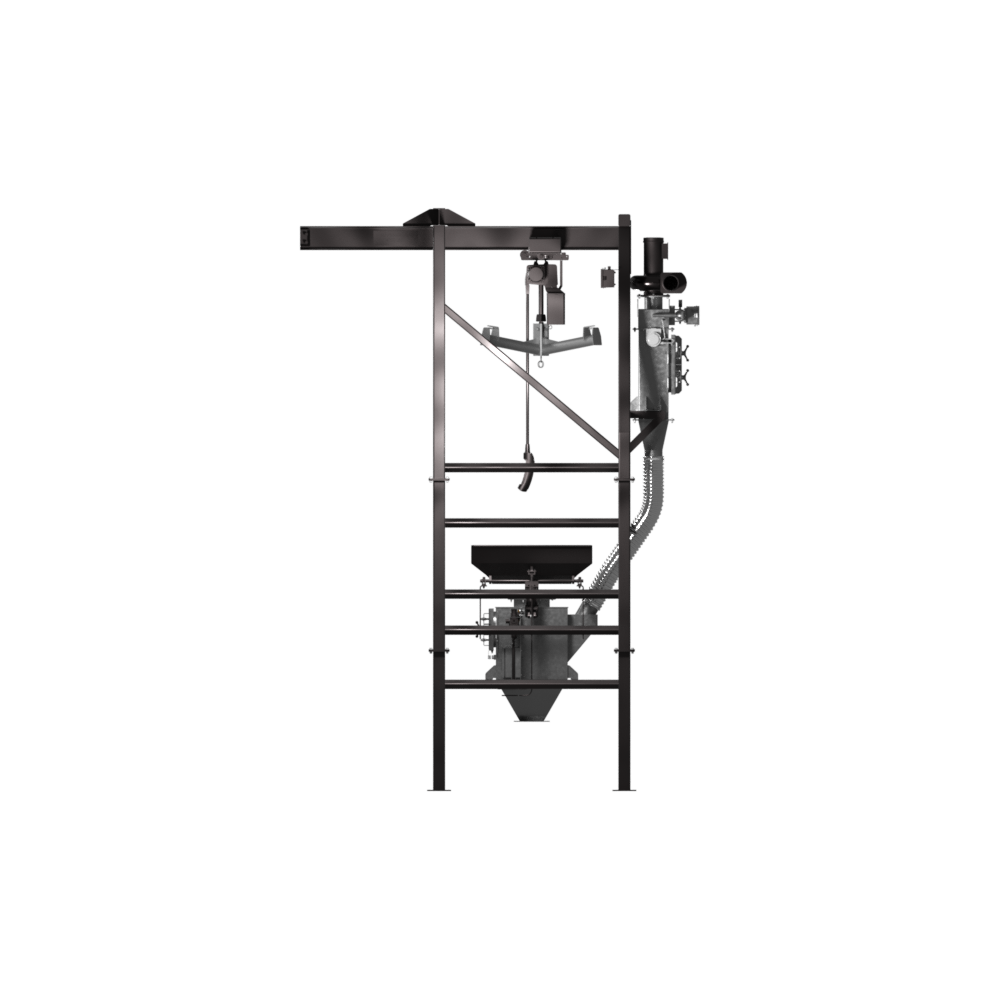

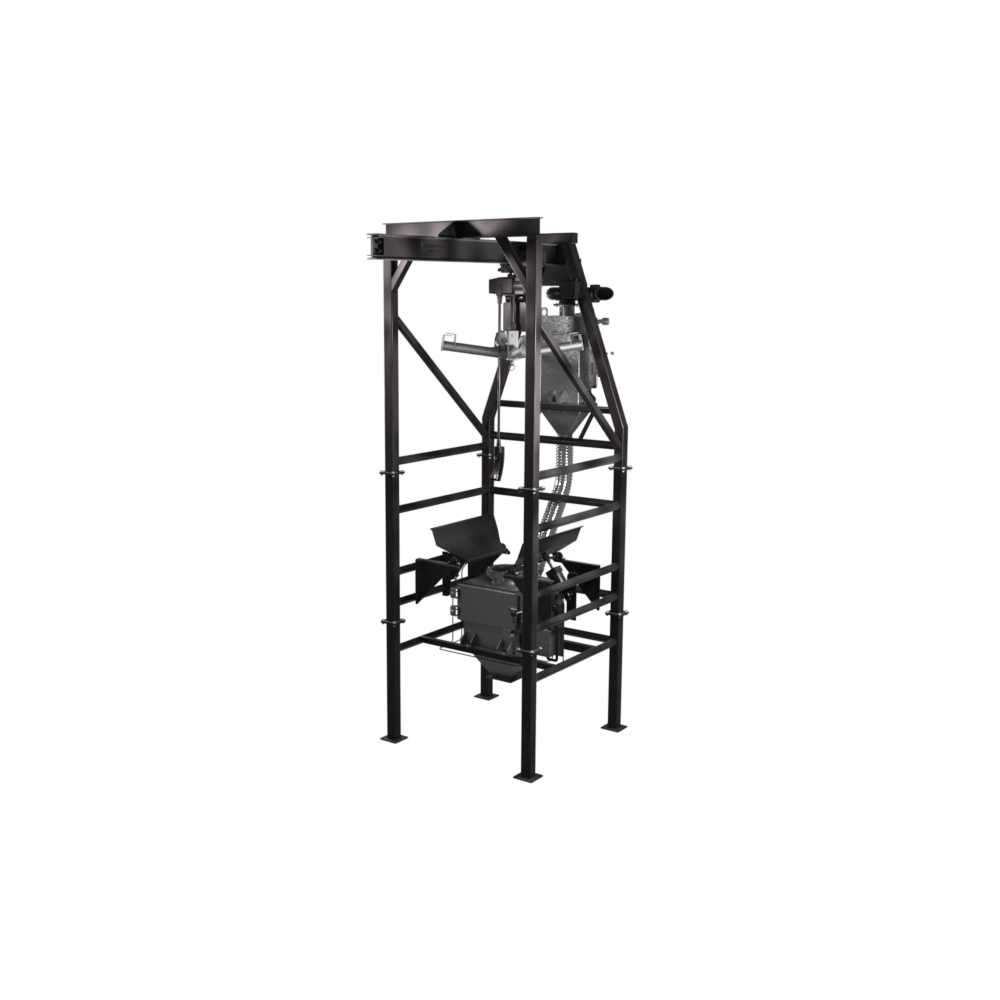

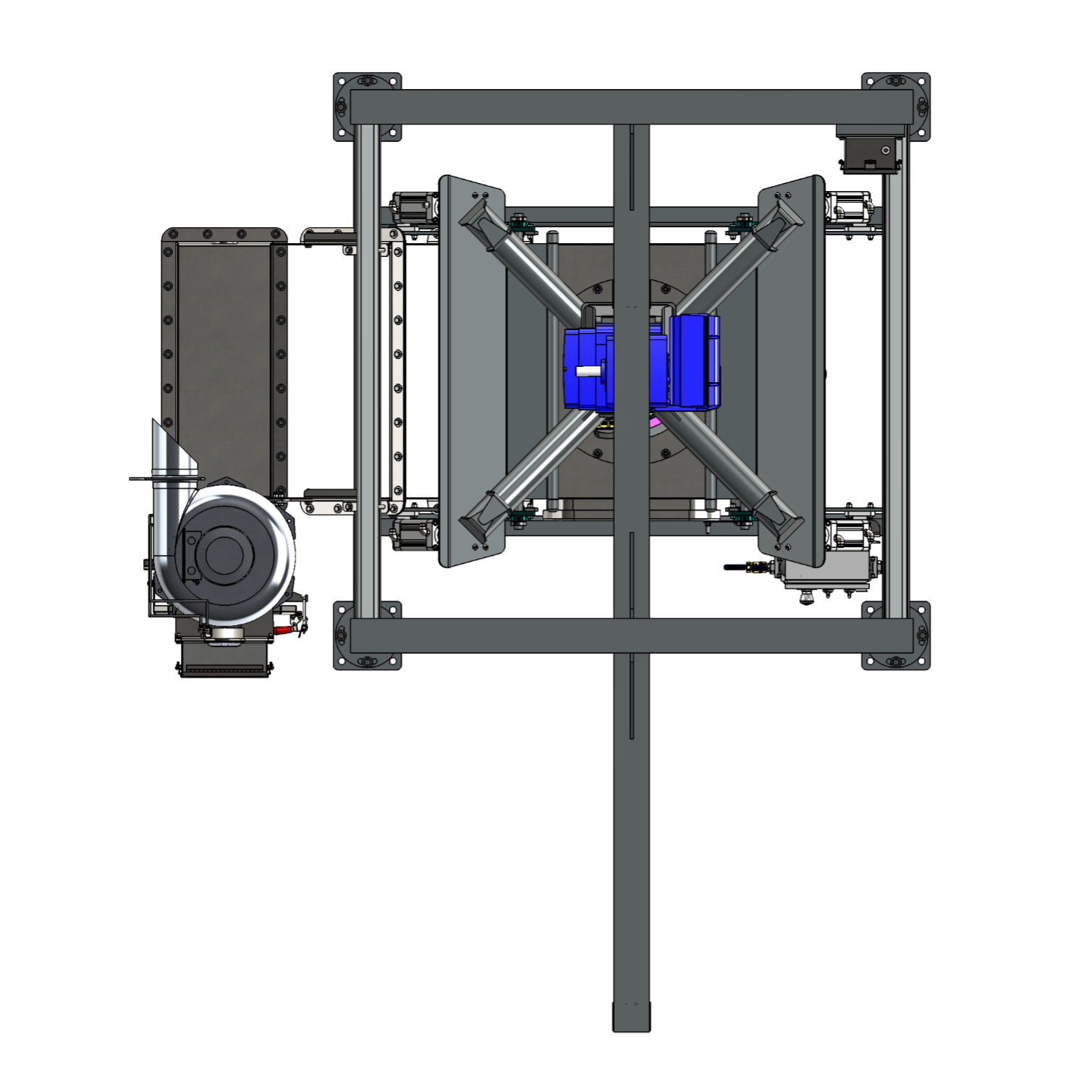

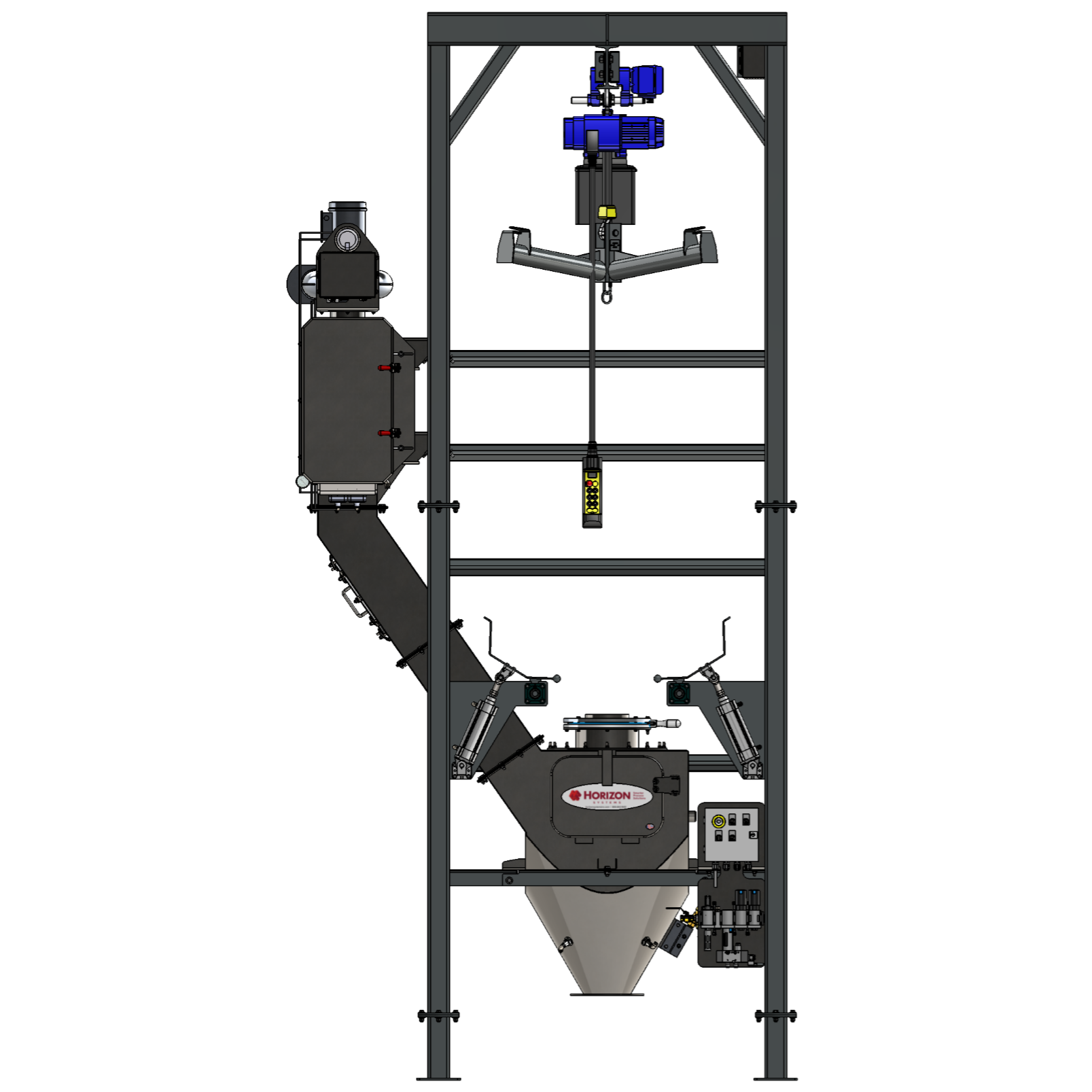

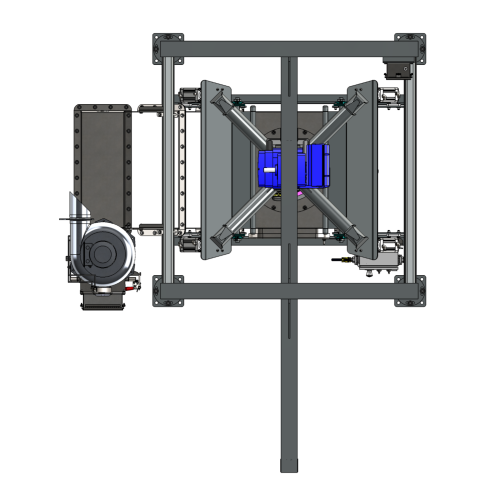

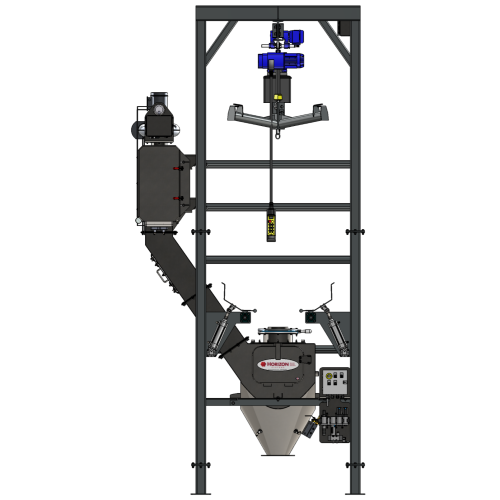

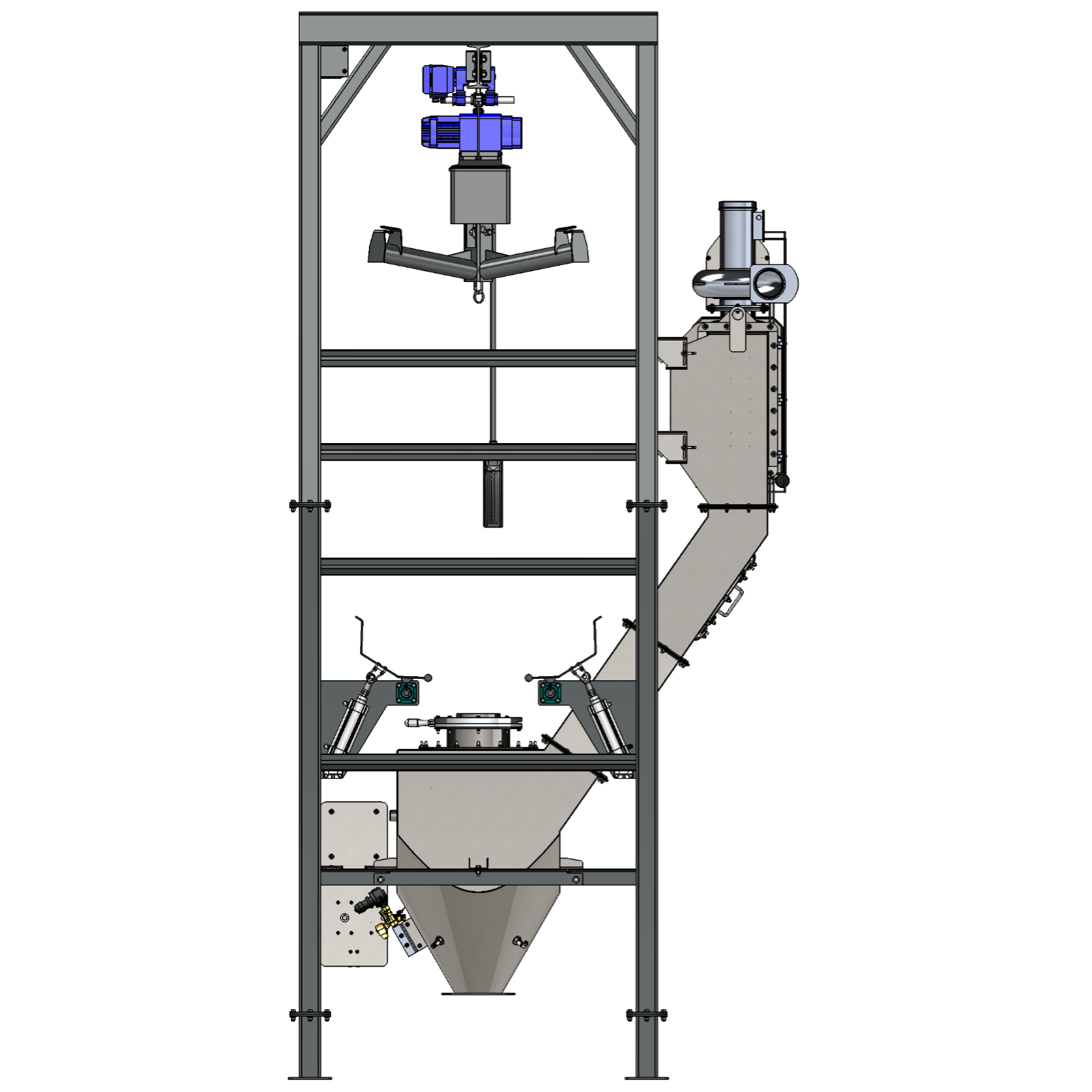

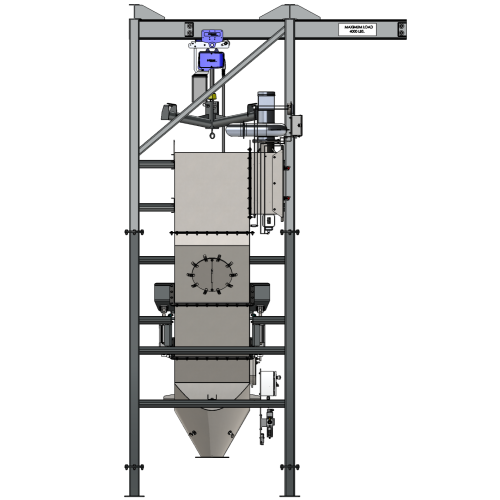

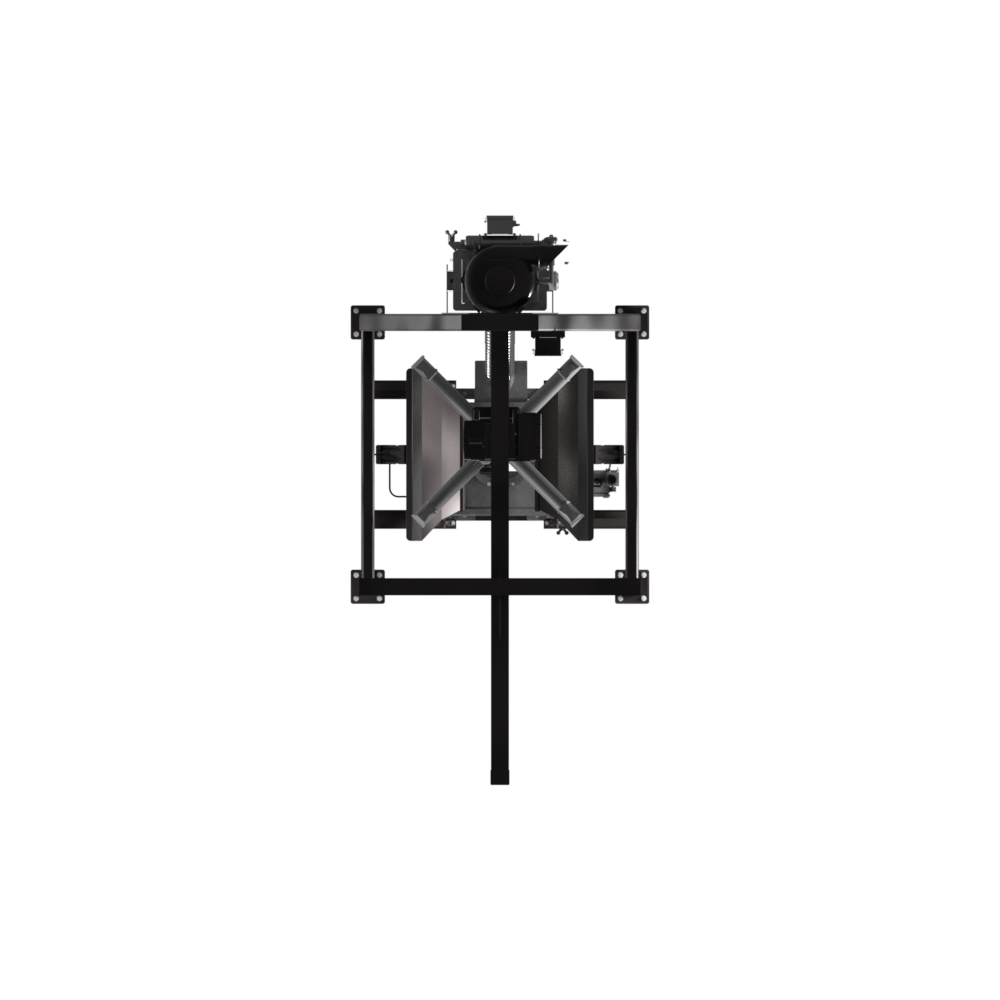

The Monorail Loading (ML) Series Bulk Bag Discharger is designed as an independent system for raising bulk bags for loading and discharging materials.
STANDARD FEATURES
Includes chain hoist and motorized trolley to accommodate various bag lengths (72” maximum bag length). Low profile bag lifting adaptor included
Square tube support frame consisting of (3) bolt together sections designed to reduce handling and shipping costs
Two bag massage paddles pneumatically actuated to promote material flow.
Iris valve inlet to limit dusting (12”, 15” & 18” size options available for various bulk bag discharge spouts)
Bag Untie Hopper provides an easy access door equipped with safety switch to disengage vent filter pulsing/fan along with equipment attached to discharge flange of Bag Untie Hopper that might present a safety hazard. Hopper capacity is approximately 14 cu. ft.
Integral dust control provided by a vent filter and fan. Collected dust is reintroduced into Bag Untie Hopper
Multiple options for filter mount location (right side, left side or reverse side of Bag Untie Hopper) and filter access door orientation (left or right) for ease of use
Local control assembly (NEMA 12) provided for control of massage paddles, vent filter pulsing and vent filter fan. Motor starter for vent filter fan must be supplied by buyer
OPTIONAL FEATURES
Carbon steel and stainless-steel material options offered for all product contact zones
Bag Untie Hopper can be equipped with the following flow aids: Fluidizers (sold separately)
Fluid flow hopper (sold separately)
Frame can be modified to include load cells for loss-in-weight applications
