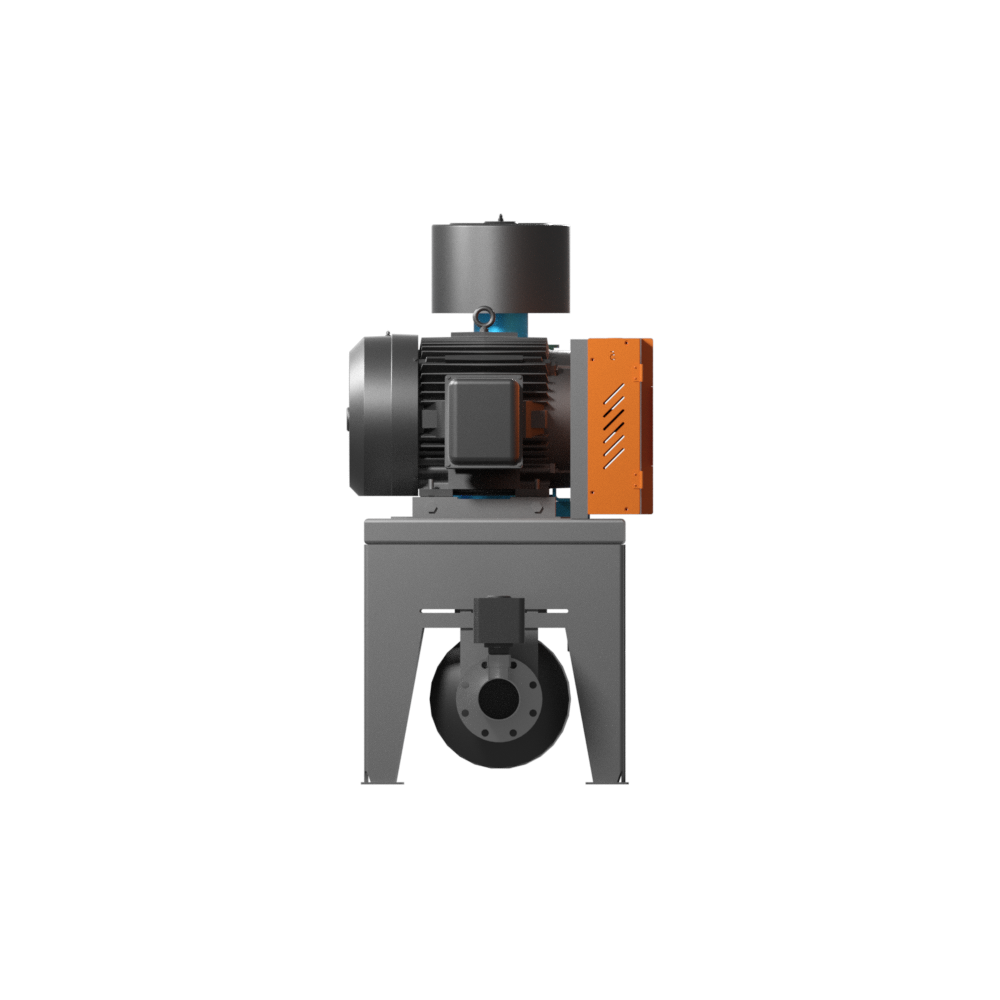

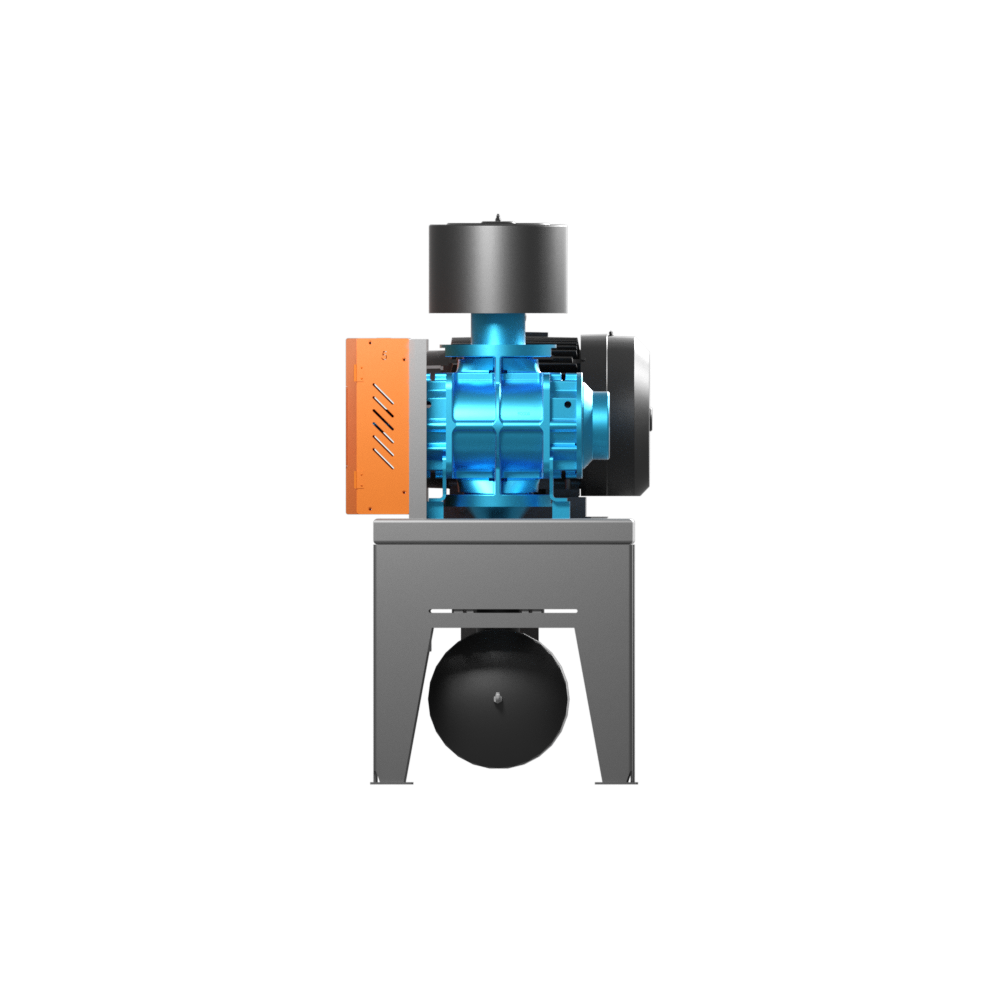

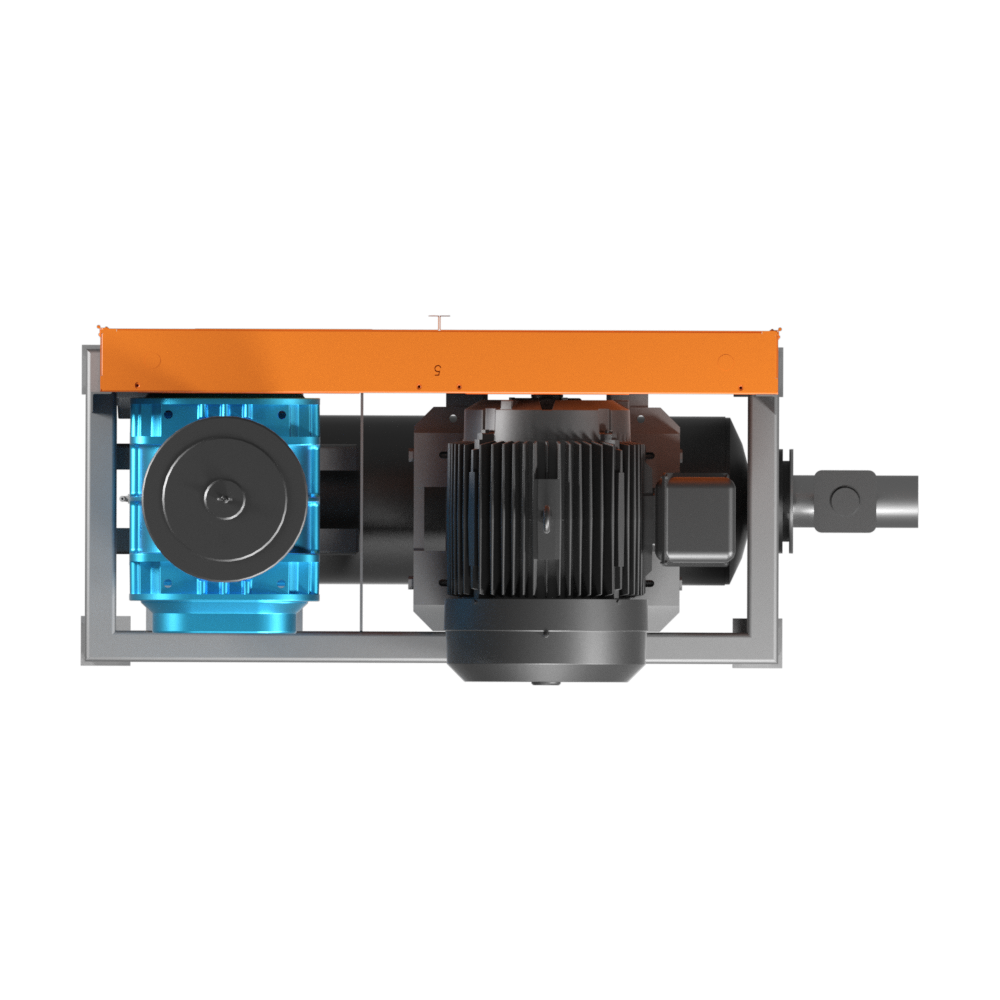

Pressure Blower PBH Series

FEATUREs

The Pressure Blower Package utilizes positive air pressure to convey the material.
The motive air/pressure is produced by a positive displacement blower which is located at the beginning of the conveying system.
Air intake filter/silencer
Positive displacement blower – all major brands available
V-belt drive assembly and drive guard – drive guard features access via bolted removable doors, slotted front and drop through bottom
Electric motor and adjustable mount base – 230/460 V, 3 Ph, 60 Hz; all major brands, enclosures and efficiency ratings available
Weighted pressure relief valve provides superior life compared to conventional spring-loaded relief valves
Check valve prevents product from entering discharge silencer in the event of a high pressure or back pressure
Combination chamber – absorption discharge silencer reduces noise radiation in the vicinity of the package
Vibration isolation and expansion joint isolates blower from the silencer to prevent fatigue stresses to the silencer and piping
