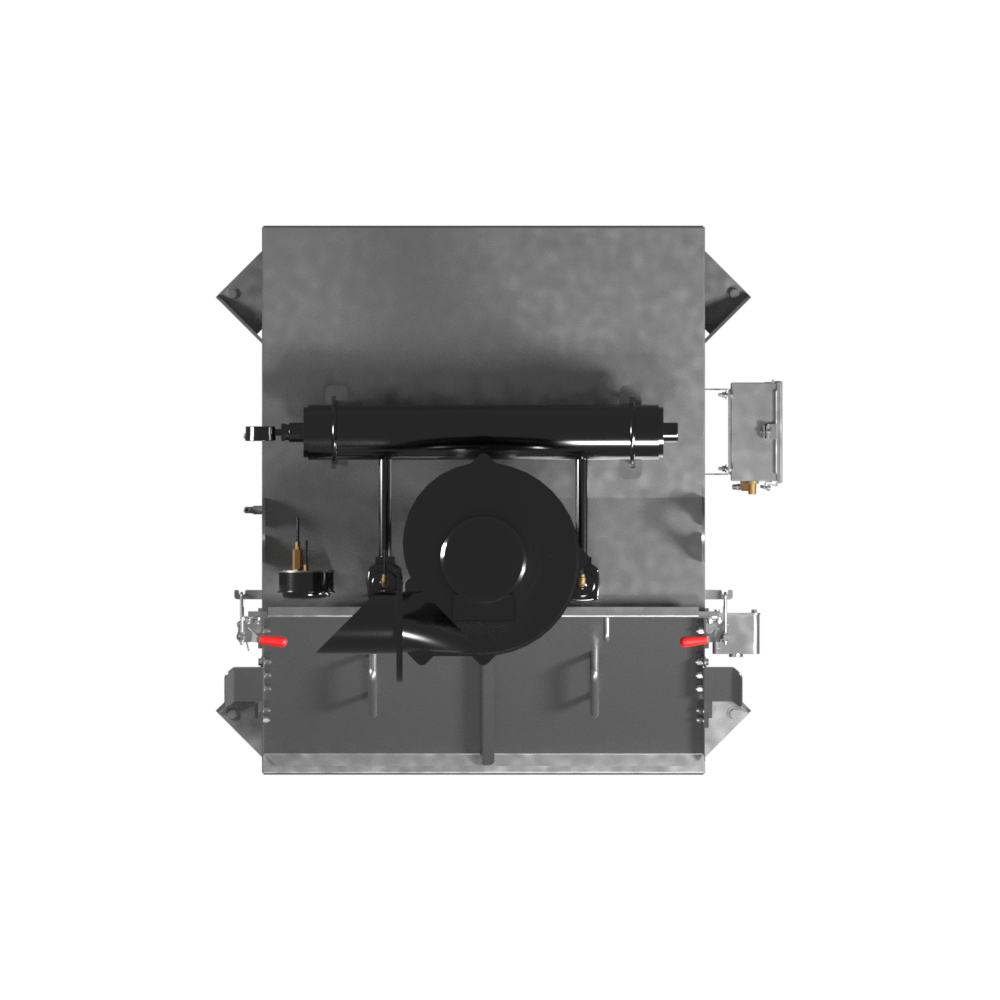

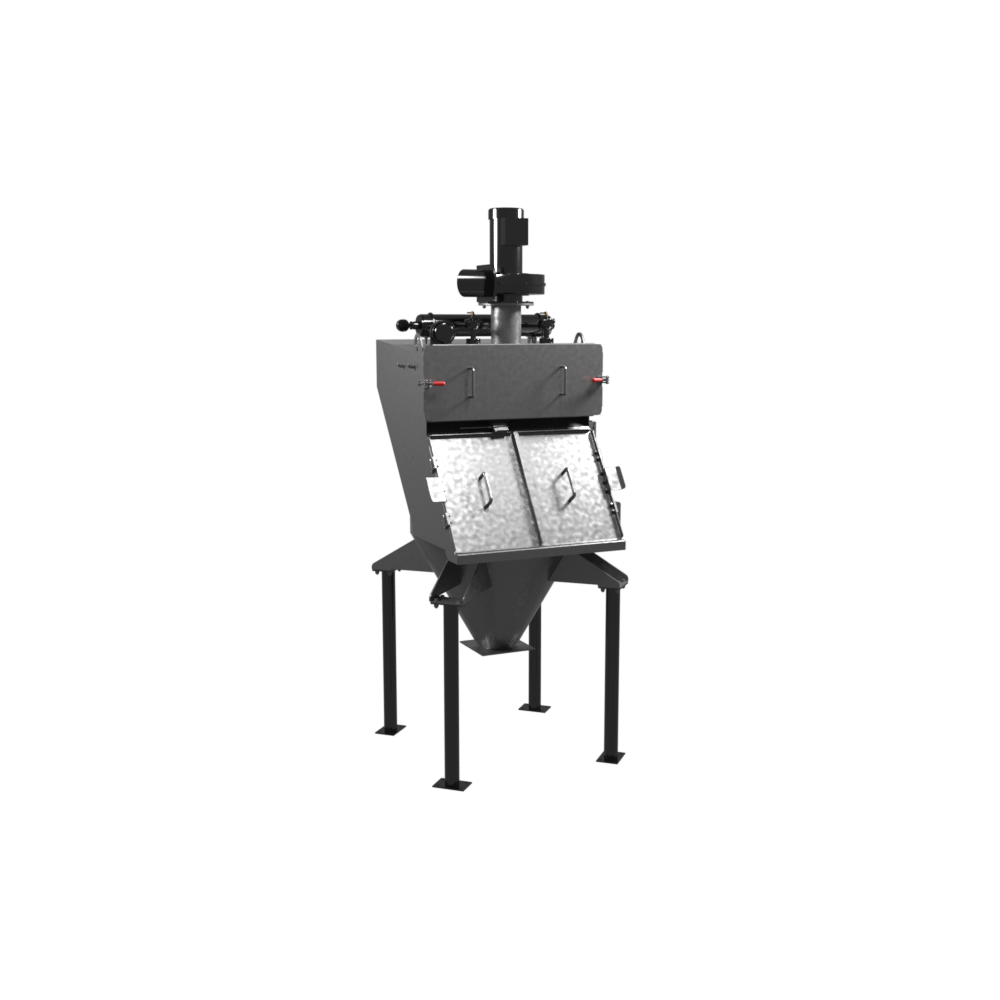

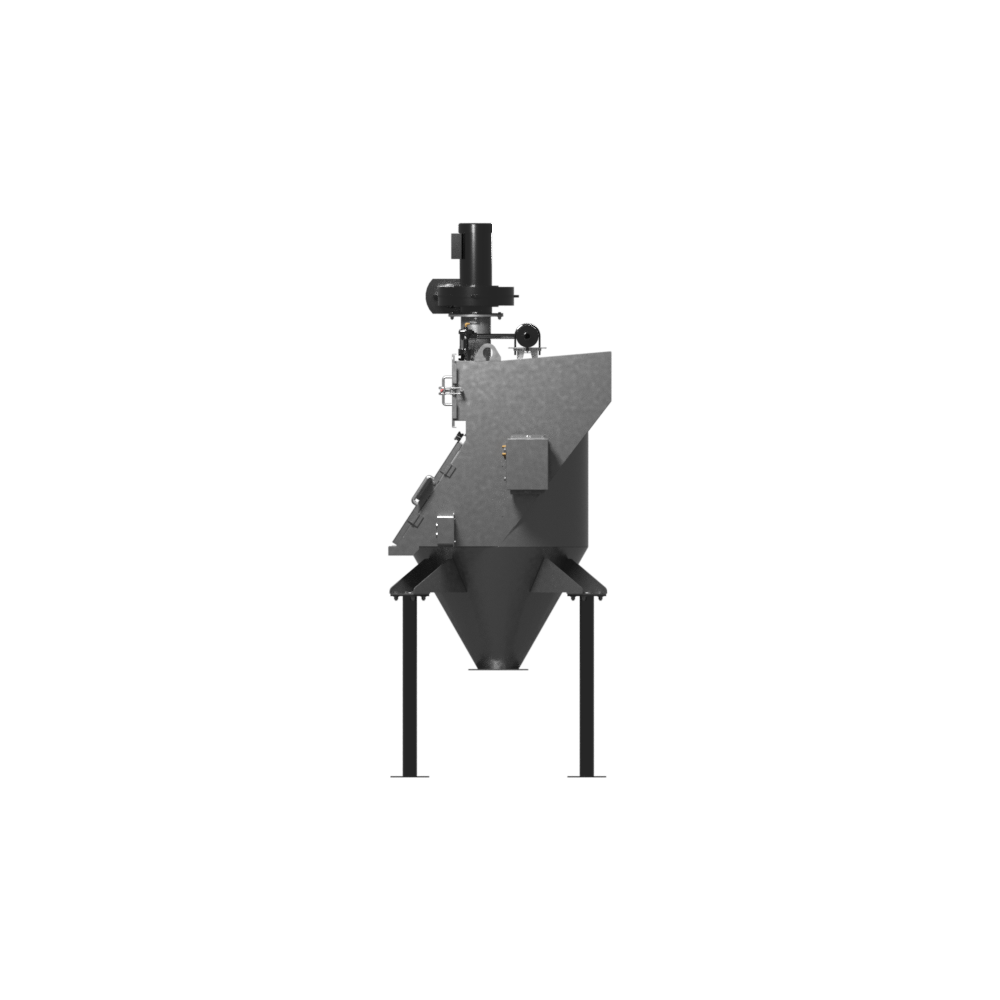

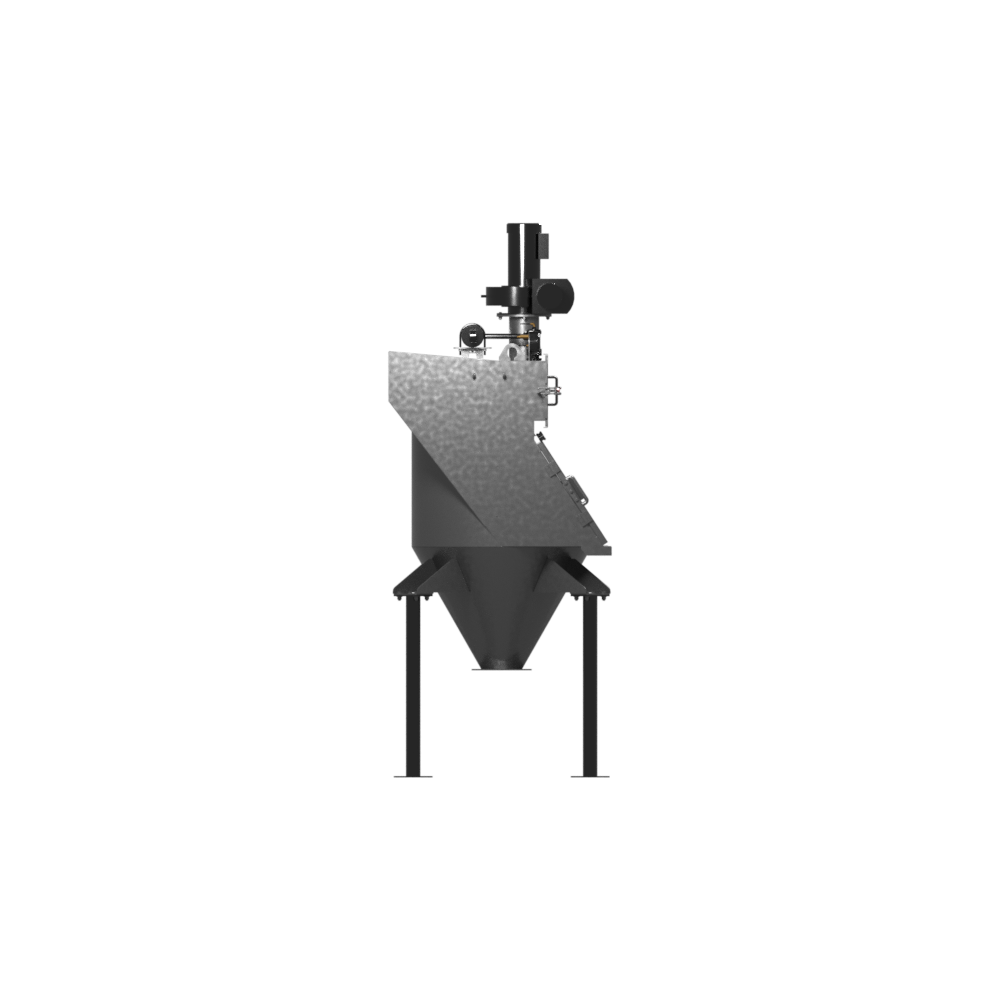

This is a manually operated bag dump that requires a worker to physically lift and cut open the bag. This unit utilizes an integral dust collector to control dust created from dumping bags.
STANDARD FEATURES
60 degree hopper, nominal, with flanged product discharge
Hinged access doors with adjustable stops
36” wide x 12” deep removable grating
Removable air baffle
36” wide bag resting shelf
Support legs to provide 24” clearance beneath the discharge flange
Integral dust collection system consisting of the following:
Clean air plenum
Compressed air header and piping
15.8 square feet of tubular STS spun bonded polyester media with PTFE membrane
Aluminum diaphragm valves with push lock air fittings
Adjustable filter timer and pilot solenoids, factory mounted and pre-wired in a NEMA 4 electrical enclosure
Magnehelic differential pressure gauge
Clean air fan, factory mounted to the clean air plenum, consisting of the following:
