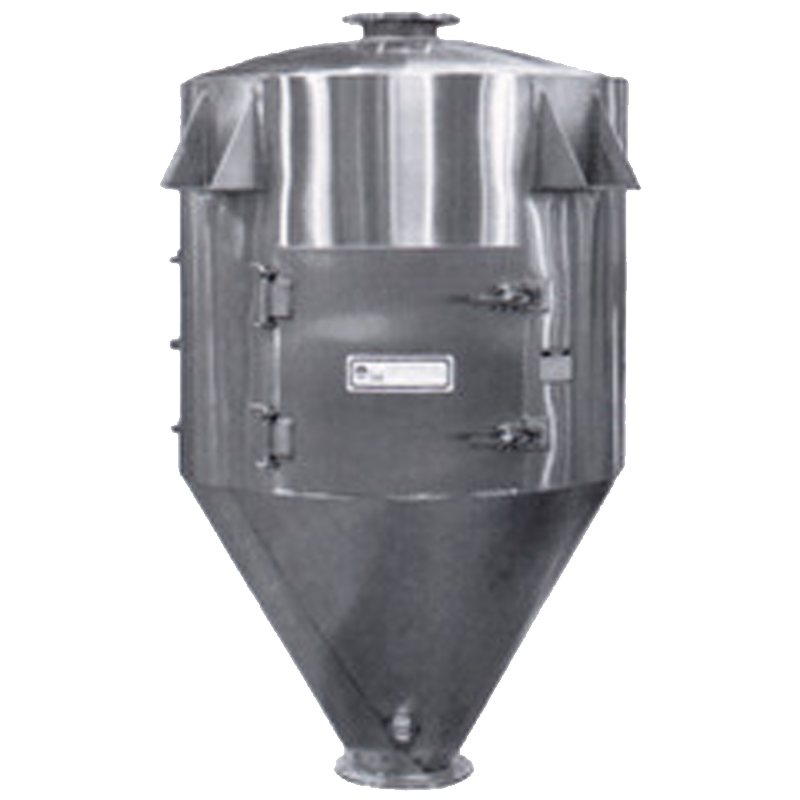

Scale Hopper SH Series

508 scale hopper sh series 01

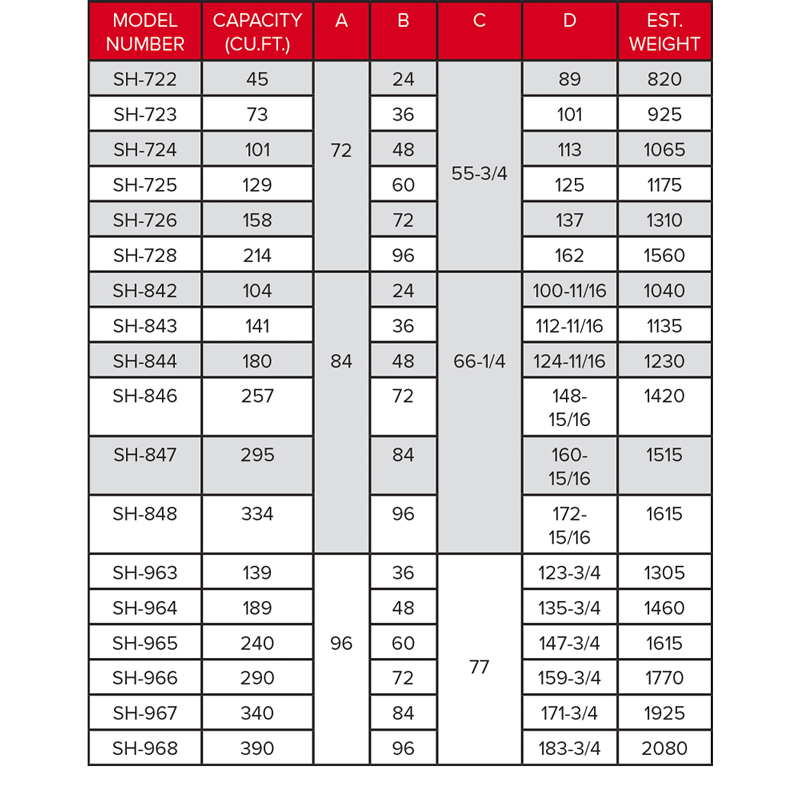

508_scale_hopper_sh_series_spectable2
508_scale_hopper_sh_series_spectable-1

This hopper aids in metering and weighing product and typically is used when the hopper is being pneumatically filled via a Hopper Fill Valve.

STANDARD FEATURES

  • Utilized when the hopper is being pneumatically filled via a Hopper/Scale Fill Valve
  • 60 degree hopper with flanged product discharge
  • Closed top with flanged inlet
  • Mechanical vacuum breaker valve with vent sock to allow the hopper to “breathe” air in during the discharge cycle
  • One (1) half coupling for mounting of high level indicator
  • Three (3) support lugs
  • Lifting lugs

OPTIONAL FEATURES

  • Available in carbon steel or stainless steel construction
  • Support legs/structure
  • Pressure/Vacuum relief valve
  • Vacuum rated design versus standard atmospheric design
  • Inspection/Access opening
  • Industrial/Food grade epoxy interior
  • Smooth not Flush (80 grit) or Smooth and Flush (120 grit) weld seams
  • 70 degree hopper slope
  • Asymmetric hopper configuration (offset)
  • Various flow aids (e.g. fluidizer pads, bin vibrator, bin activator, etc.)
