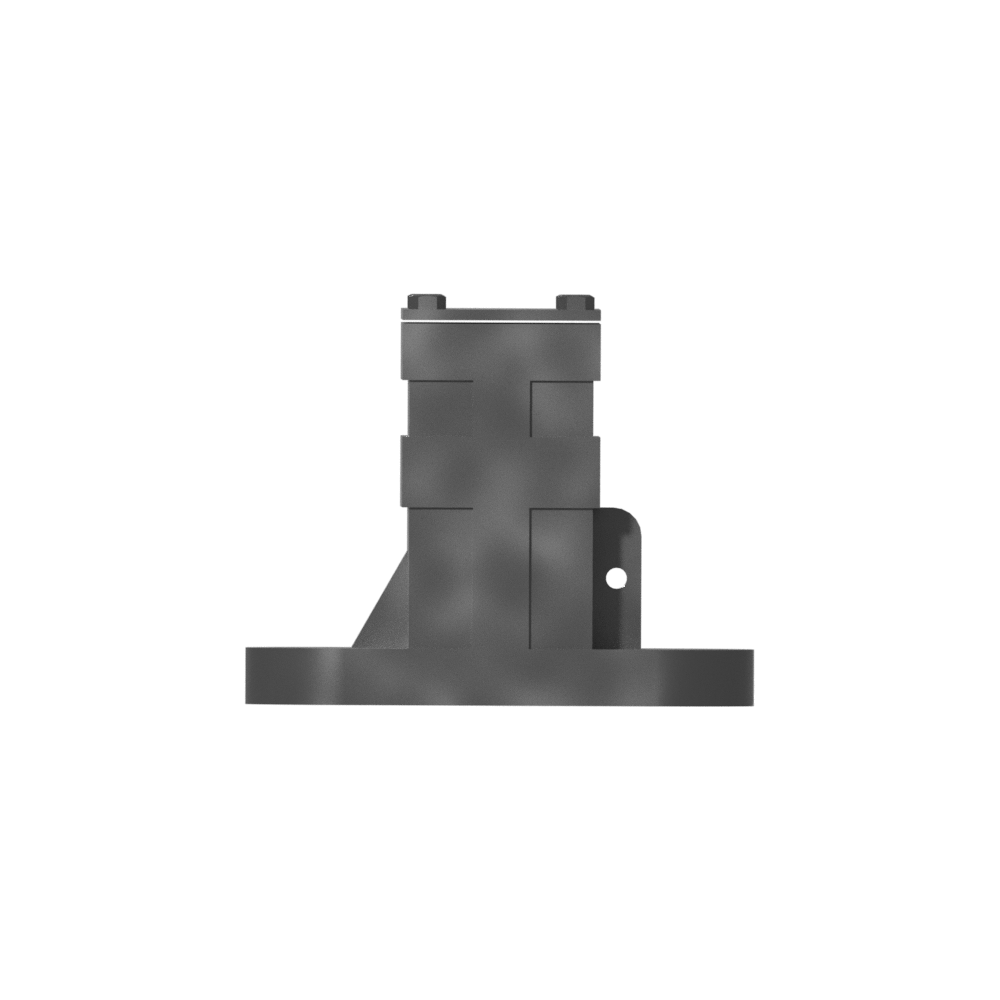

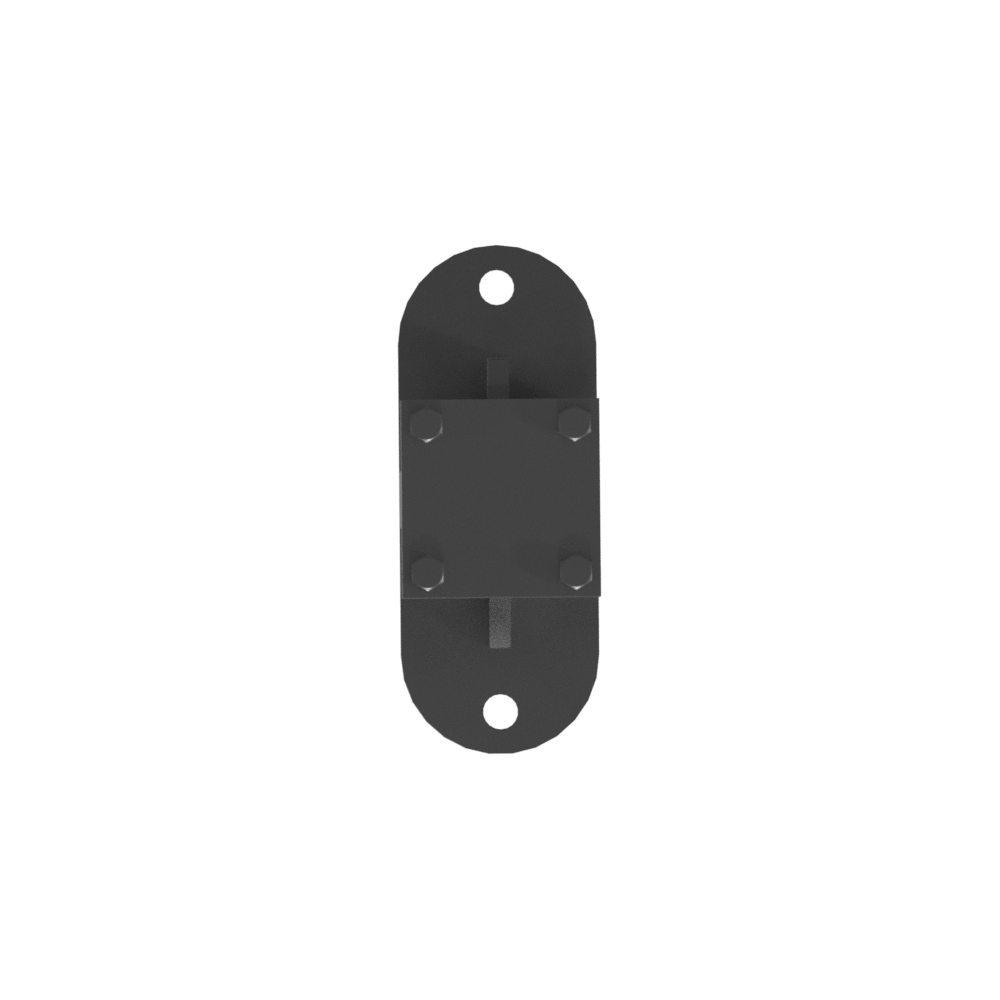

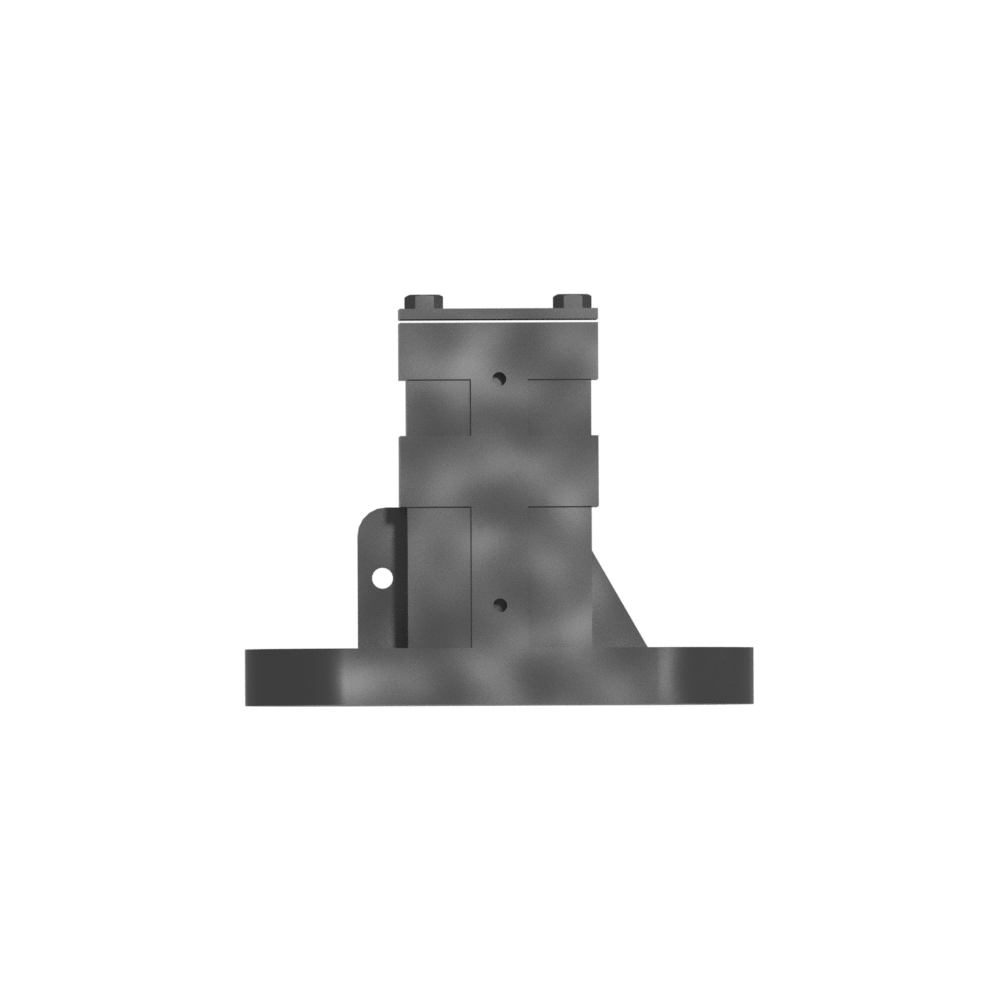

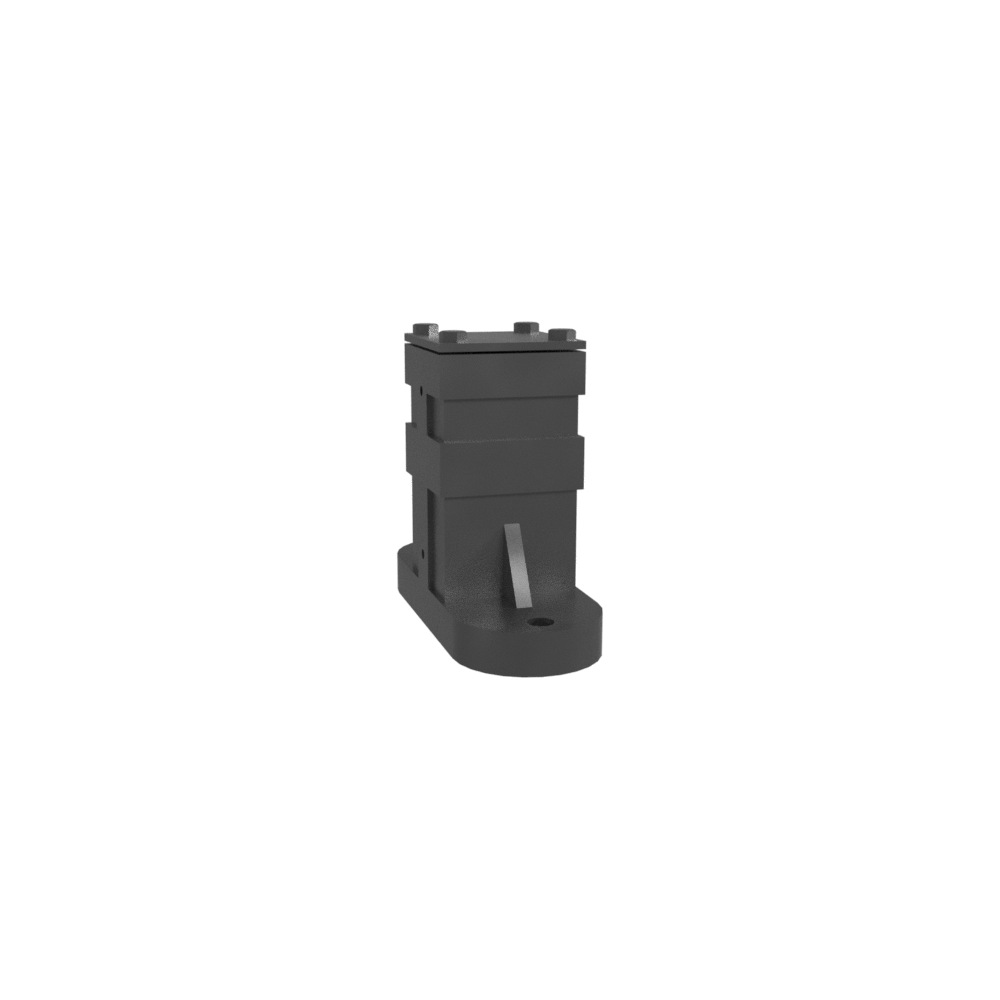

Bin Vibrator BV Series

Fluidizer pads located within the hopper are operated by pulsing air on and off. As the pads are pushed out with air-flow, they will vibrate the sides of the hopper and push air outwards amongst the sides of the hopper in order to increase or resume product flow by breaking loose compacted or sluggish materials from the hopper cone.

STANDARD FEATURES

Cast ductile iron housing
Impacting type model to produce a metal-to-metal contact at the mounting plate which is the most effective in eliminating difficult flow problems
Air operated
Designed for a maximum hopper/bin capacity of 5 to 15 cubic feet

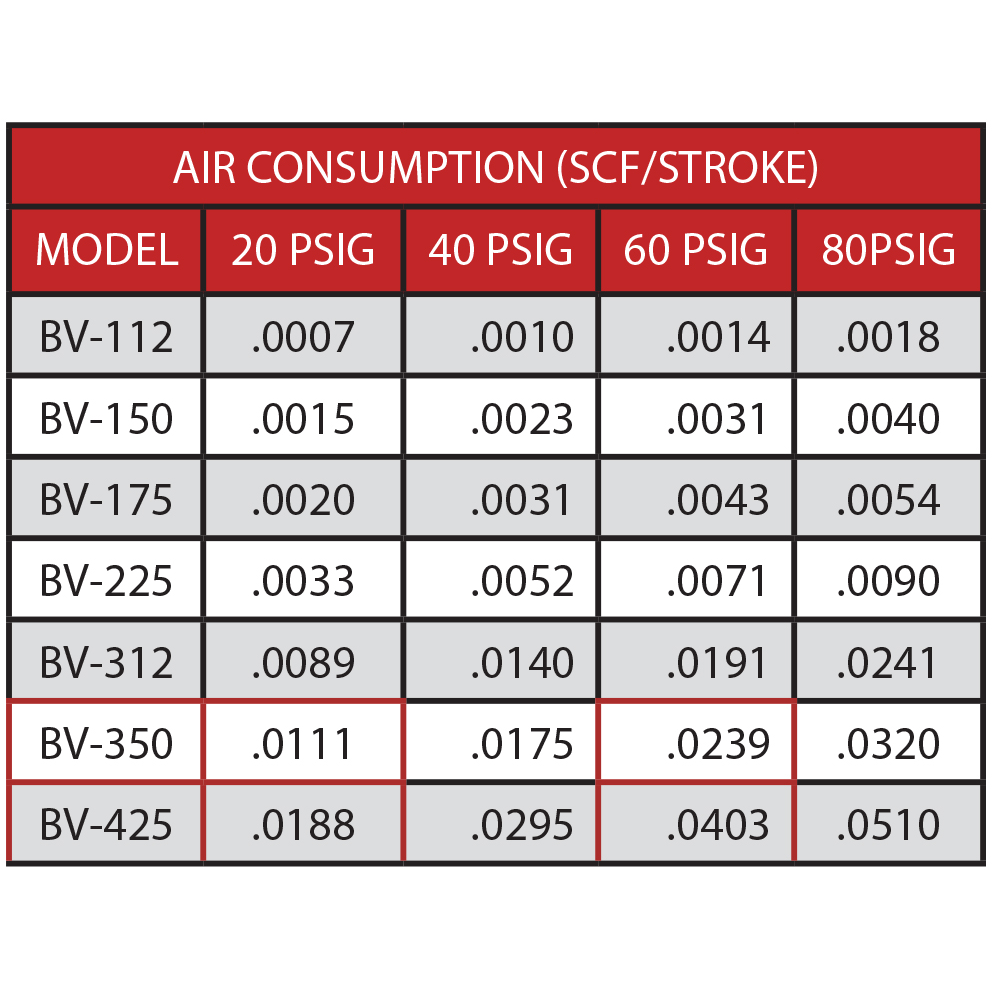

Filtered and lubricated compressed air at 60 PSIG maximum required and is to be supplied by buyer

OPTIONAL FEATURES

Air control assembly complete with the following:
Air manifold, factory installed, complete with interconnecting air line and fittings
Pressure regulator with gauge
Single solenoid valve to allow for remote (hand switch) or automatic (timer or PLC) operation – 120 VAC, NEMA 4 enclosure
Timer control board
Air accumulator tank

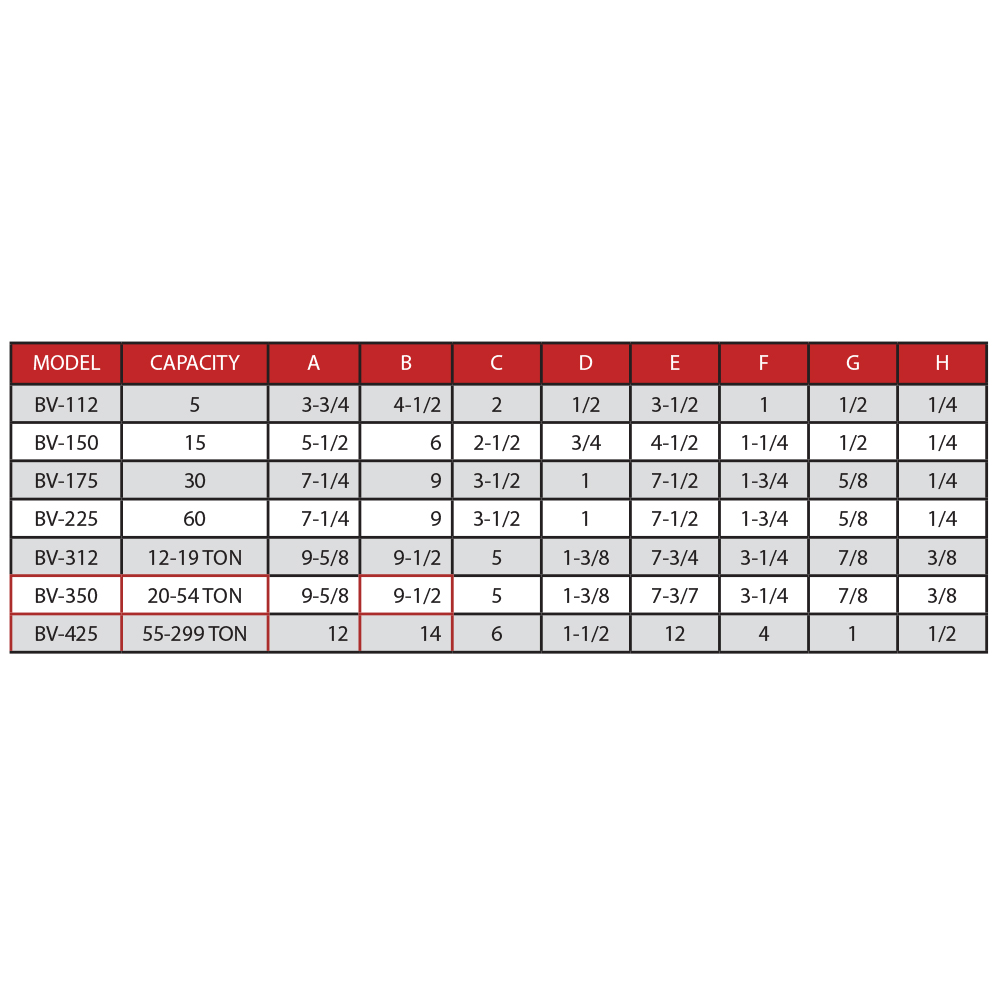

CAPACITY: Capacity shown is for the capacity in the hopper “cone” section and are for impact type vibrators. For air cushion vibrators, which provide for lower noise level, use on size larger or multiple units.
