Rotary Airlock SD Series

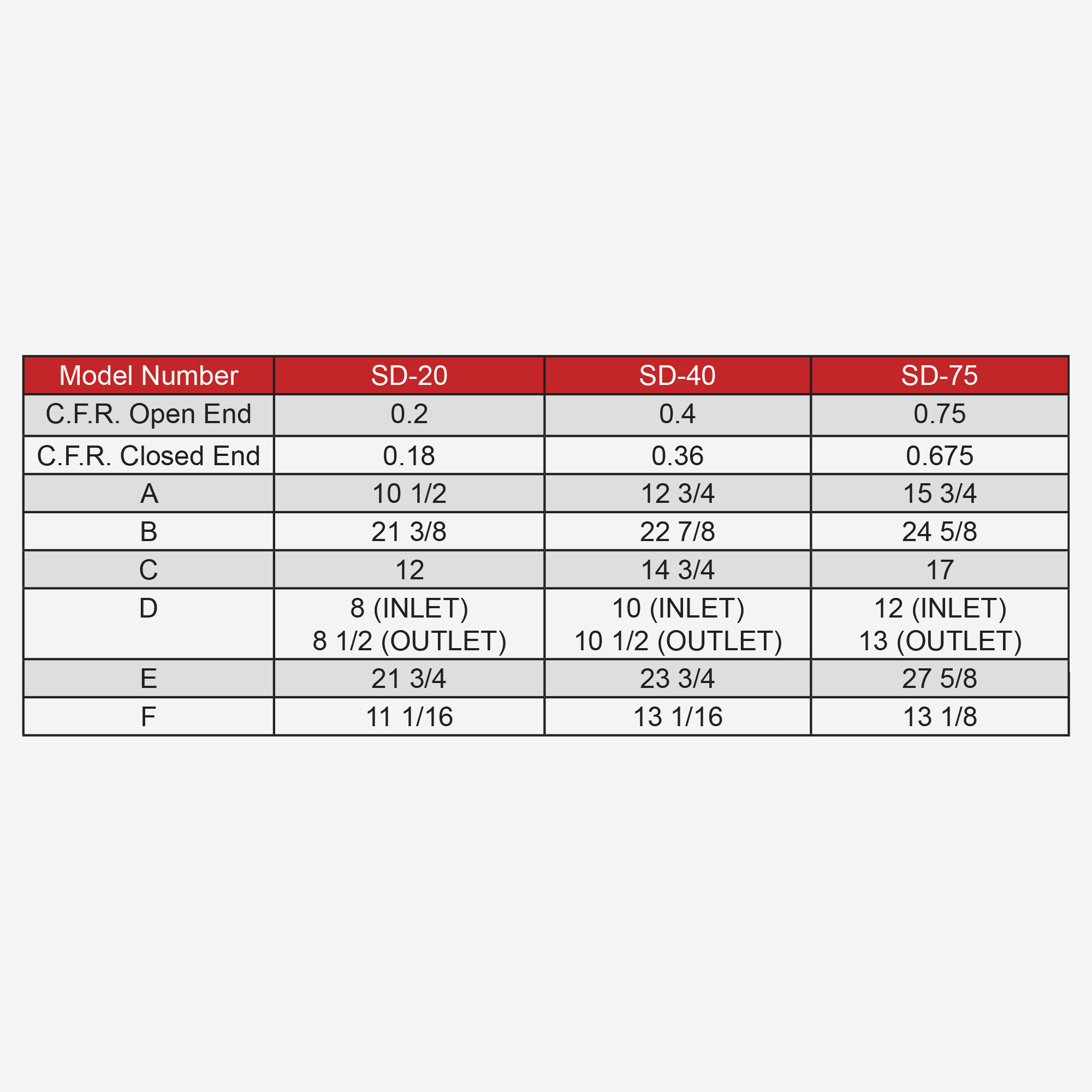

The Rotary Airlock SD Series meters product out of a hopper while isolating the air pressures on either inlet or outlet of the airlock. A typical application for an airlock is to meter product into a convey line. Our standard rotary airlock/feeder offers 3 different sizes from SD-20 to the SD-75 and 5 standard types of construction all of which are equipped with outboard bearings and seals.

FEATUREs

  • Type A Cast Iron Housing and End Plates with Carbon Steel, Open End, Rotor
  • Type B Cast Iron Housing and End Plates with Carbon Steel, Open End, Rotor, Chrome Plated Housing, End Plates and adjustable, hardened tool steel, rotor tips
  • Type C Cast Iron Housing and End Plates with 304 Stainless Steel, Open End, Rotor and Chrome Plated Housing and End Plates
  • Type D Cast Iron Housing and End Plates with Carbon Steel, Closed End, Rotor, Chrome Plated Housing, End Plates and adjustable, hardened tool steel, rotor tips
  • Type E Cast Iron Housing and End Plates with Carbon Steel, Closed End, Rotor of flexible, replaceable, urethane seal material
