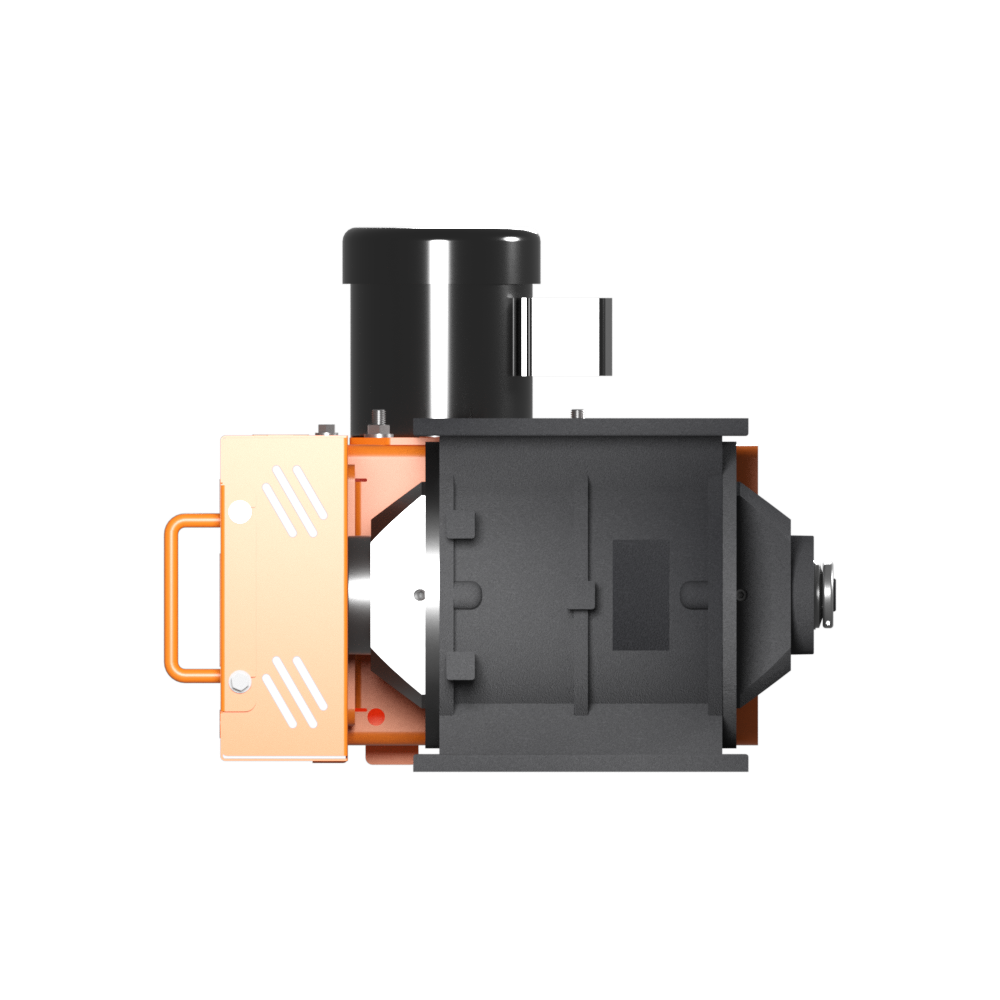

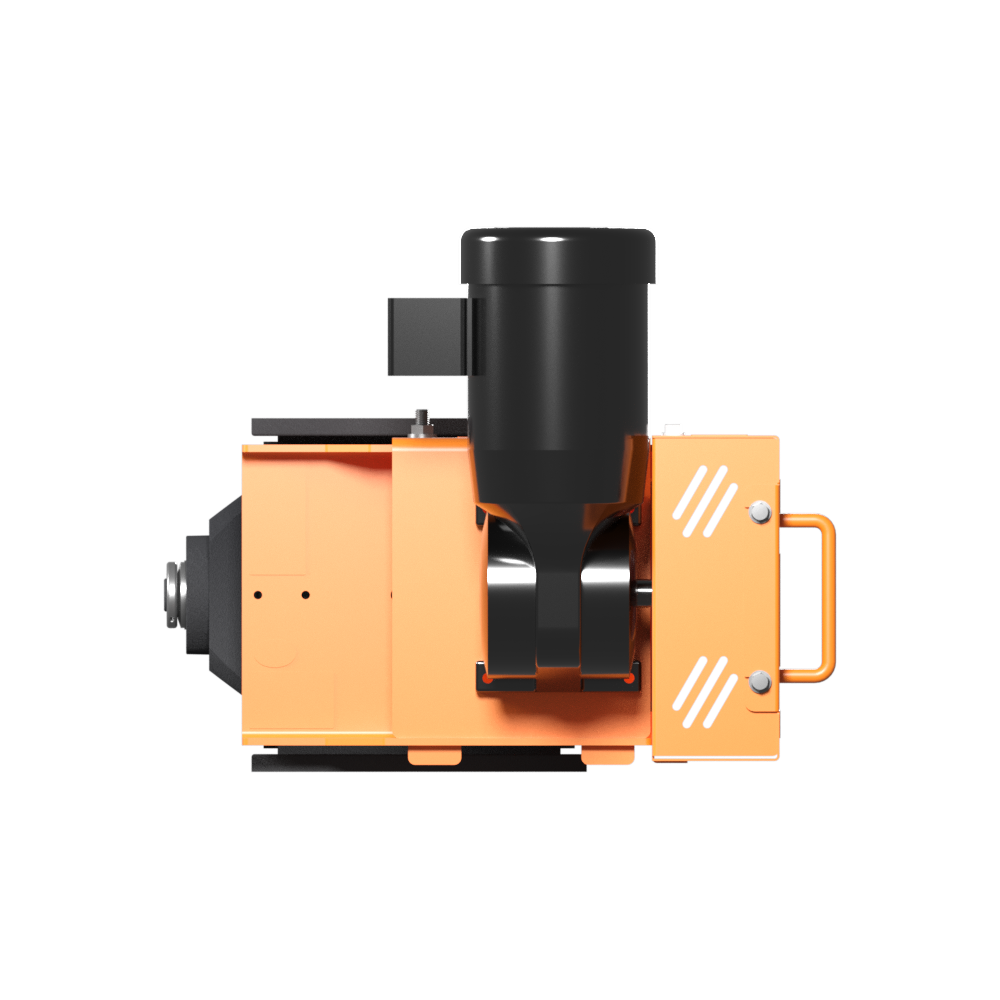

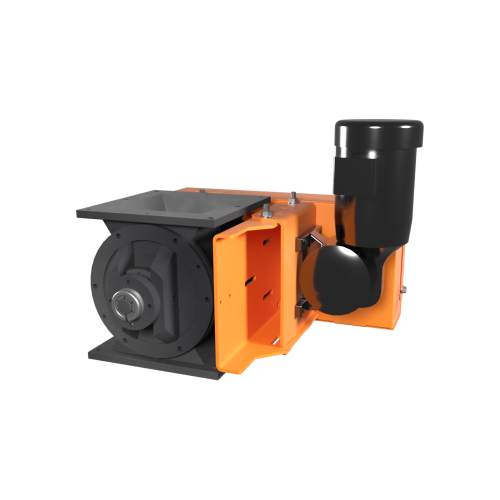

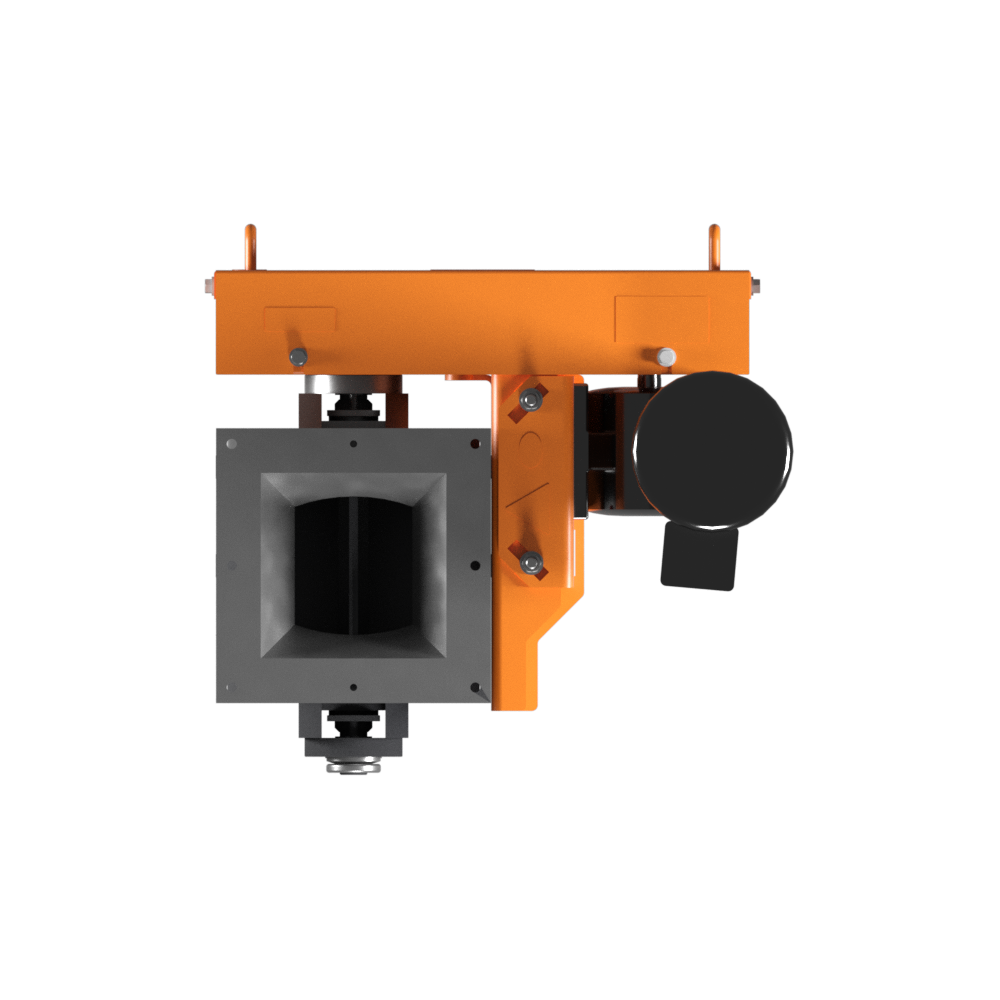

Rotary Airlock HS Series

The Rotary Airlock HS Series meters product out of a hopper while isolating the air pressures on either inlet or outlet of the airlock. A typical application for an airlock is to meter product into a convey line. Our standard rotary airlock/feeder offers 8 different sizes from HS-77 to the HS-2218 and 6 standard types of construction all of which are quipped with outboard bearings and seals.

FEATUREs

  • Type A Cast Iron Housing and End Plates with Carbon Steel, Open End, Rotor
  • Type B Cast Iron Housing and End Plates with Carbon Steel, Open End, Rotor, Chrome Plated Housing, End Plates and adjustable, hardened tool steel, rotor tips
  • Type C Cast Iron Housing and End Plates with 304 Stainless Steel, Open End, Rotor and Chrome Plated Housing and End Plates
  • Type D Cast Iron Housing and End Plates with Carbon Steel, Closed End, Rotor, Chrome Plated Housing, End Plates and adjustable, hardened tool steel, rotor tips
  • Type E Cast Iron Housing and End Plates with Carbon Steel, Open End, Rotor of flexible, replaceable, urethane seal material
  • Type F Cast 304 Stainless Steel Housing and End Plates, Open End, Rotor (only available in 910 or 1214)
